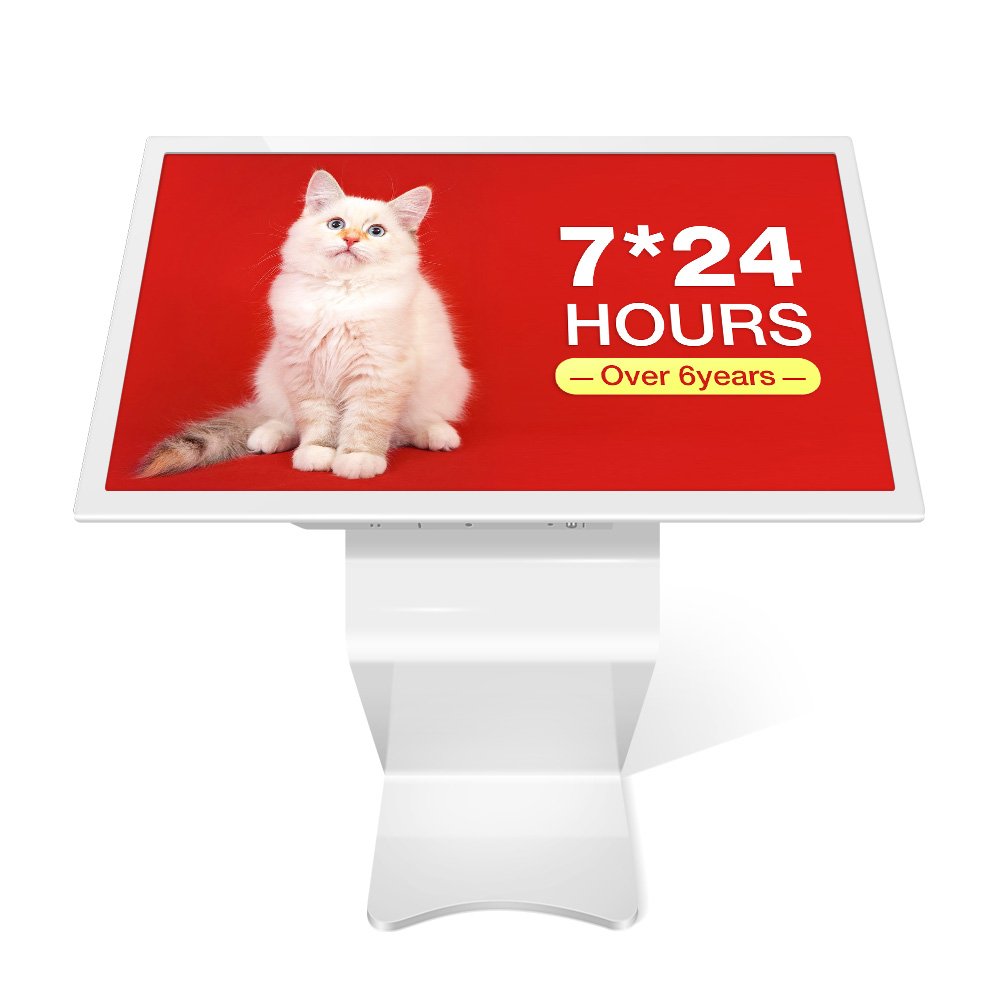

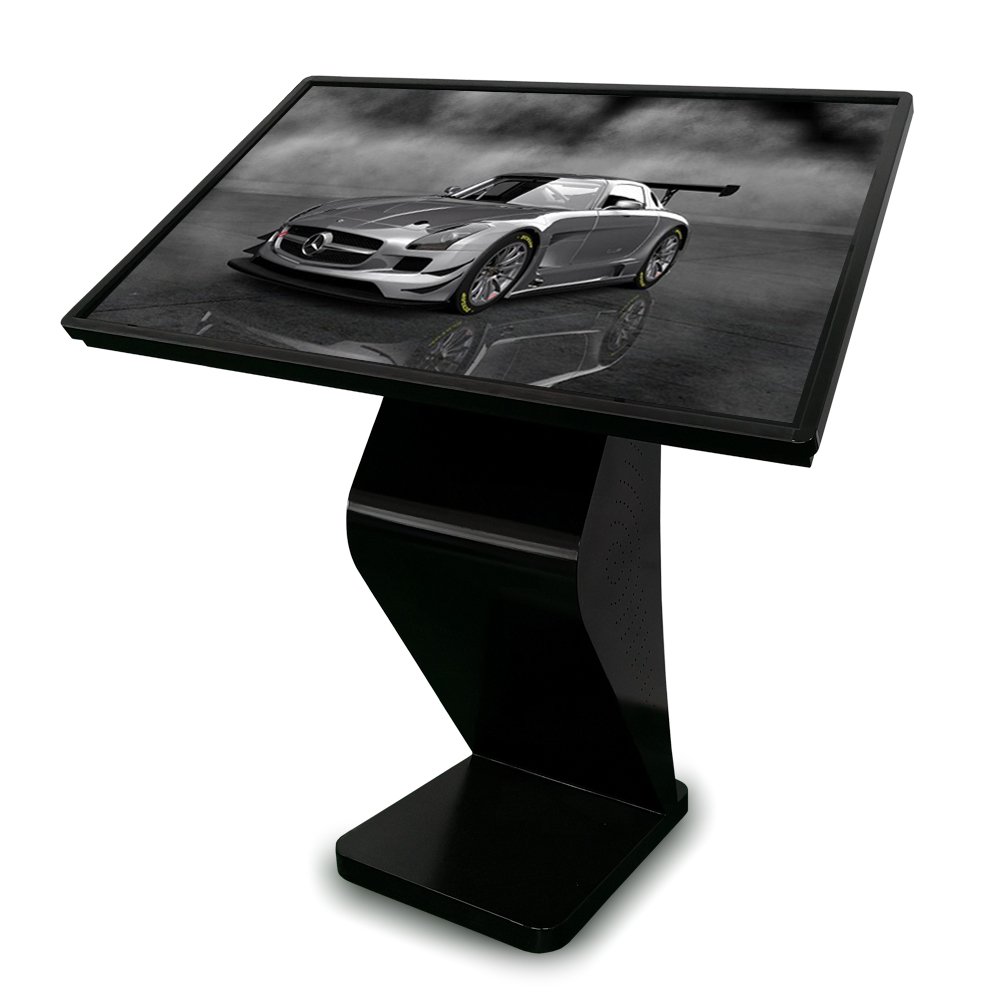

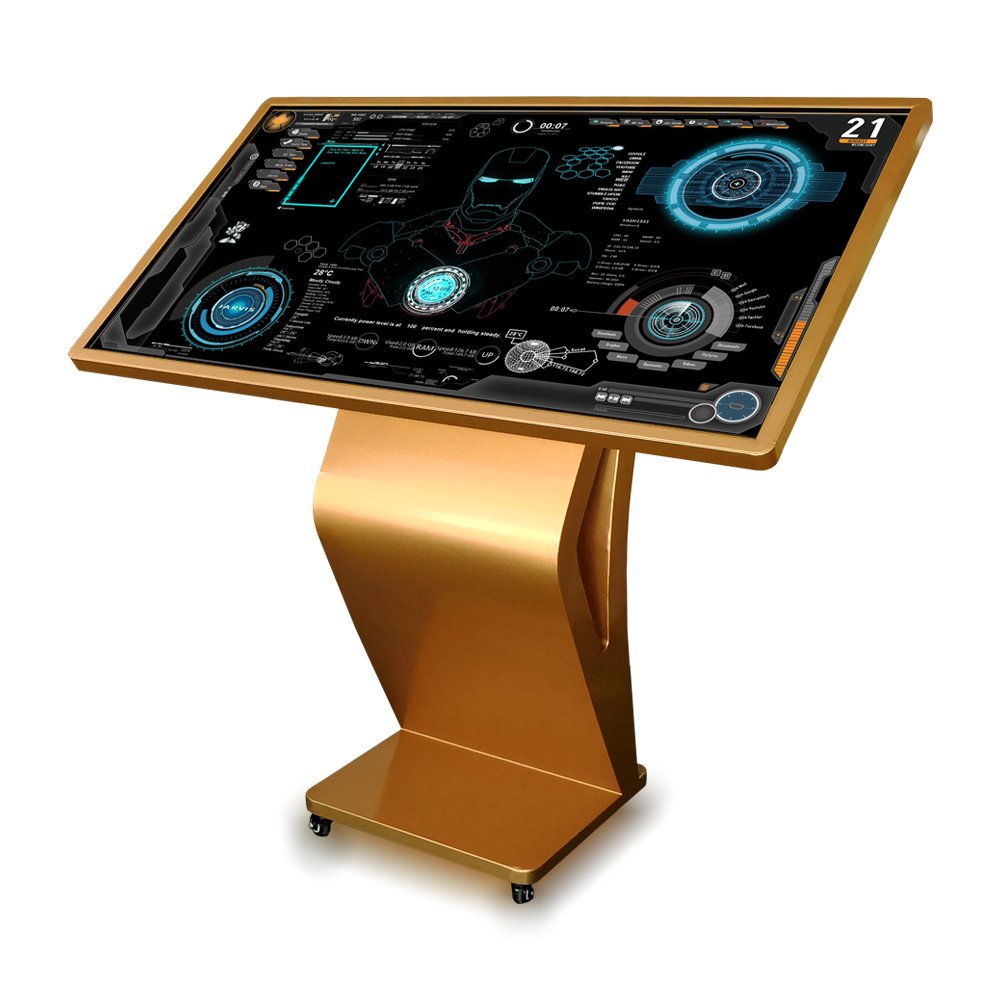

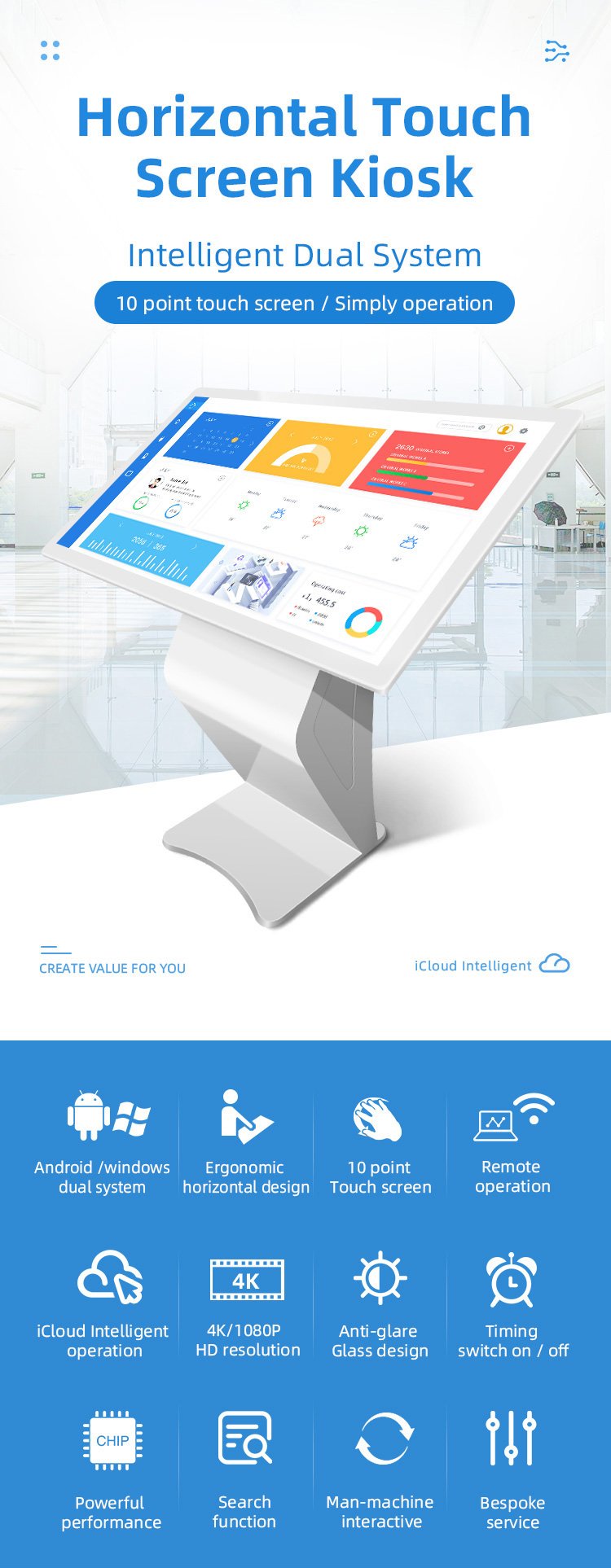

K model Touch Screen Kiosk Intelligent Touch Screen Advertising & Inquiry All-in-One Machine

As a next-generation intelligent interactive solution for commercial spaces, the Intelligent Touch Screen Advertising & Inquiry All-in-One Machine seamlessly integrates digital advertising dissemination with self-service information delivery, specifically designed to enhance operational efficiency and user experience in commercial environments. Utilizing industrial-grade infrared touch technology, this device supports 10-point multi-touch operation and 1920×1080 Full HD resolution, ensuring 24/7 stable performance in high-traffic scenarios such as shopping malls, exhibition halls, and transportation hubs.

Core Advantages:

Dual-Mode Content Management System: Through the CMS platform, administrators can simultaneously manage advertising displays and information inquiry modules, enabling real-time updates of promotions, digital maps, product catalogs, and more, with ad click-through rates increasing by up to 300%.

Data-Driven Precision Marketing: Integrated foot traffic analytics and interaction heatmap tracking precisely record user query behavior data, providing actionable insights for advertising pricing and content optimization.

Advanced Manufacturing Craftsmanship:

The base adopts cold-rolled steel plate construction, ensuring exceptional durability and stability.

The screen surface features 7H Mohs hardness nano-coating, effectively resisting scratches from keys and other hard objects.

Modular design allows rapid replacement of expandable components (storage, printing, payment modules), reducing upgrade and maintenance time by 60%.

This device has been successfully deployed in benchmark projects such as Walmart’s smart shopping guidance systems and Pudong Airport’s self-check-in terminals, handling over 1.5 million daily interactions. It provides commercial clients with a secure and reliable one-stop digital interaction platform.

Application Scenarios for Intelligent Interactive Digital Signage:

Hospital Complexes: Patients can inquire about hospital information, internal navigation, and more.

Shopping Malls: Customers can access store directories and promotional content via mall navigation touch advertising screens.

Scenic Spots: Tourists can check ticket prices, access park maps, and other details through scenic spot e-guide advertising all-in-one machines.

Banks: Customers can inquire about banking services via self-service transaction terminals, while staff efficiency is significantly improved.

Get in touch

Basic functions of the software
Support video, pictures, text, scrolling subtitles, office documents and web pages and other materials display;
Support timing switch machine, unattended, 24/7 no rest;
Support full screen and split screen display programs, terminals can be distributed deployment, grouping, sub-regional tree structure;
Built-in stereo surround sound, sound stereo full;
Using HD LCD panel, with high brightness and contrast;

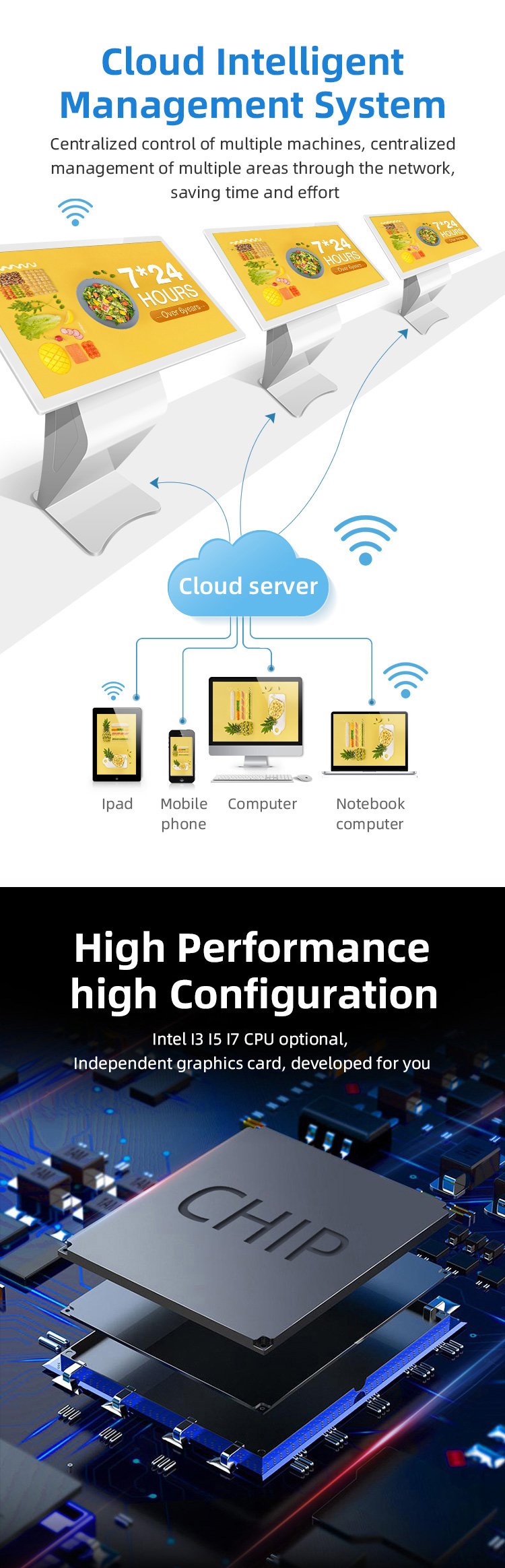

Support remote monitoring, real-time update of networking content, status monitoring, remote restart, etc.
Support local area network, wide area network and other release programs, terminals can be connected via wired network, WiFi, 4G network, etc.
Meet the needs of wired wireless networking; When there is no network, the program can be updated through the U disk;
Release is simple, only four steps: 1, upload material; 2. Program production; 3. Program scheduling; 4, program release.

Genre Self-service kiosk with Pcap touch
Display section
LCD screen parameters Resolution 1080(H)×1920(V)
Display color 16.7 M
Brightness 300 cd/㎡
Contrast 1200:1
Viewing Angle (degree) 89/89/89/89 (Typ.)(CR≥10)
Longevity > 50,000 hours
Response time 3ms (typ.)
Size 18.5/21.5/24/27/32/43/49/55/65inch

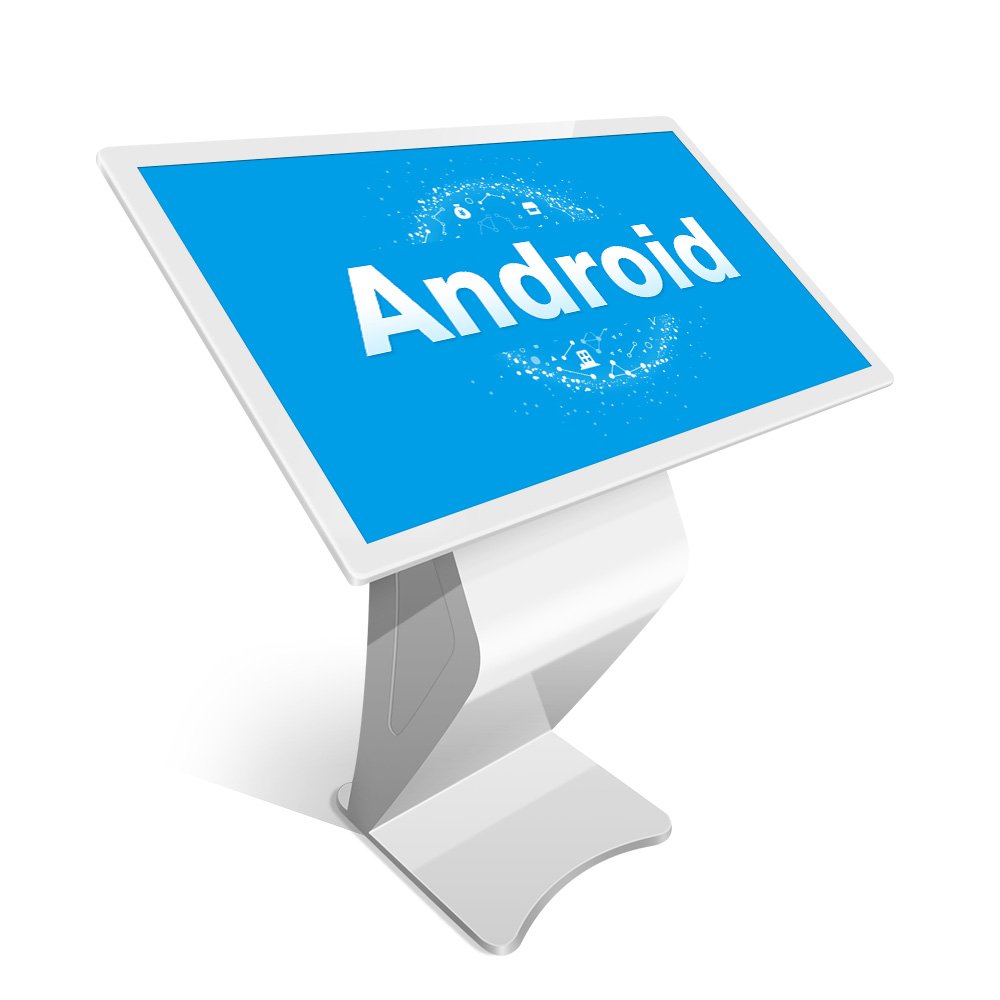

The operating system is optional Andriod Android scheme

Basic parameters

Scheme RK3568, quad-core, main frequency up to 2.0GHz
Graphics processing
device
Mali-G52
Support OpenGL ES 1.1/2.0/3.2, OpenCL 2.0, Vulkan 1.1
Embedded high performance 2D acceleration hardware
RAM 4G
ROM  32G
System Android 11
Web Support Standard: Ethernet, WiFi Optional
Input/output interface USB 2
RJ45 1
TF card slots 1
SIM card slots 1
HDMI input 1

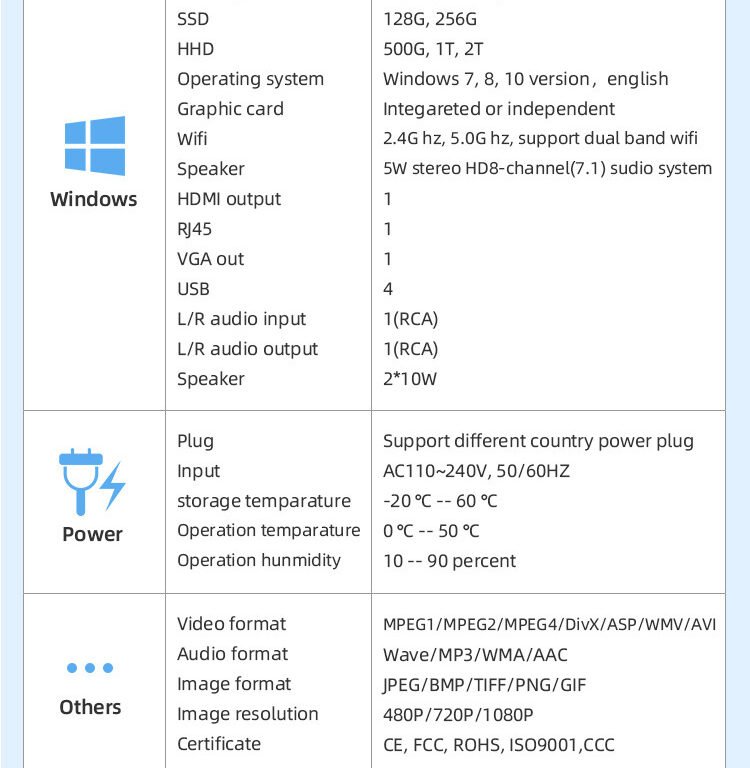

Windows Windows scheme

Basic parameters

Graphics processing
device
windows 10/11
RAM 4G
SSD  128G
System windows 10/11 i3 4th
Web Support Standard: Ethernet, WiFi Optional
Input/output interface USB 4
RJ45 1
HDMI input 1
Option Device Base K model /S model
Supported media formats Video playback Support wmv, avi, flv, mpeg
, mkv, mp4, mpg, mov, rm, rmvb, etc
Picture Format JPG, PNG supported
Audio format MP3, WMA
Capacitance
parameters
Touch function Capacitive touch/Infrared touch
Multi-touch Maximum touch points supported: ≦10 points
Scanning frequency Changes in scanning rate and measurement capacitance: ≥100KHZ
Wake up response time ms Time from finger touch to response: ≦15ms
Touch accuracy mm Deviation between the real position and the position reflected by the touch: ±2.0mm
Linearity Deviation from straight line touch: ±2.0mm
Touch separation mm Distance of two points that can be distinguished: 15mm
Sensitivity The sensitivity of the touch screen (click≤φ6mm, slip≤φ6mm: uniformly≤1.5mm)
Temperature range Operating temperature: -10℃~60℃
Operating power consumption ≥1W
Machine parameters Exterior materials Aluminum profile + hardware
Exterior color Silver border + black back shell/Black border + black back shell/all white (1 of 3)
Product size /
Installation floorstanding
Product weight /
Power of the whole machine ≤60W
Input voltage AC 100~240V 50/60Hz
Speaker Stereo L/R, 8 oh5 watts x 2
Working environment 0 ℃ to 40 ℃
Storage environment – 20 ℃ ~ 60 ℃
Accessories Hex holder, key, power cord,WiFi antenna stick
