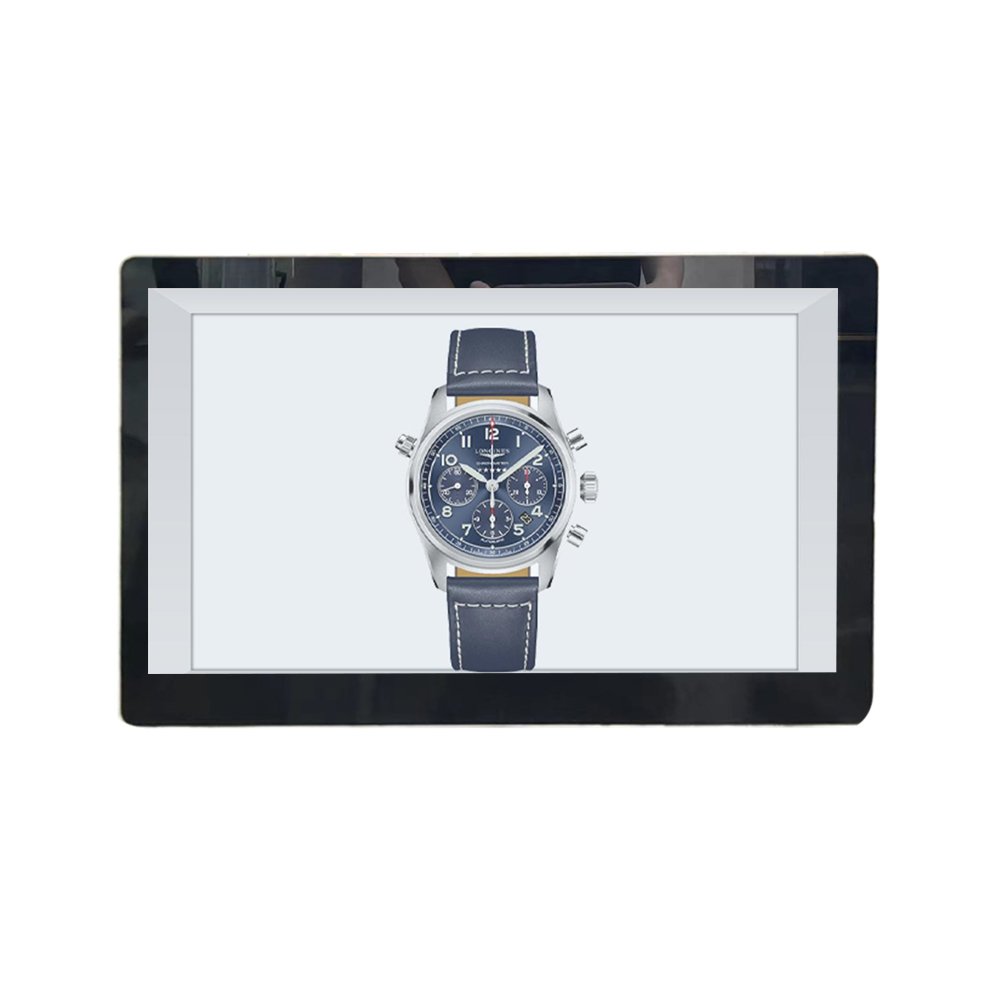

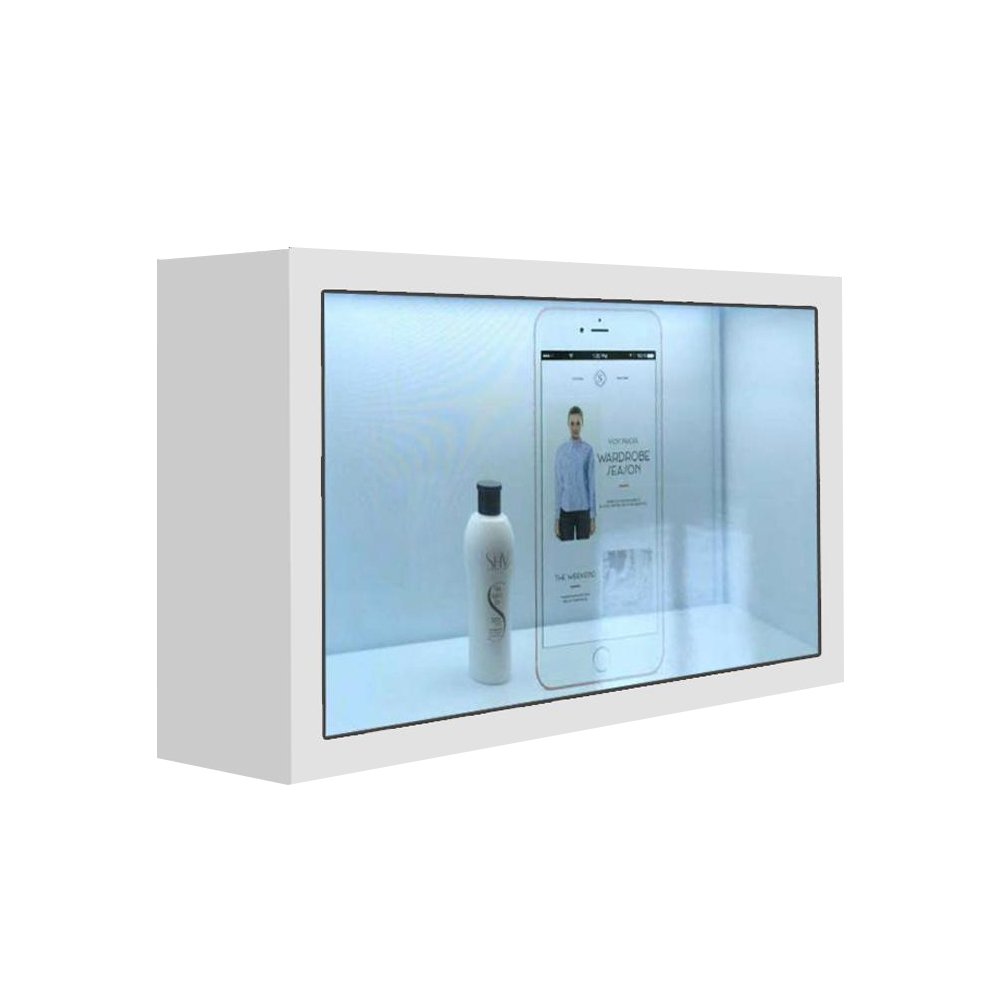

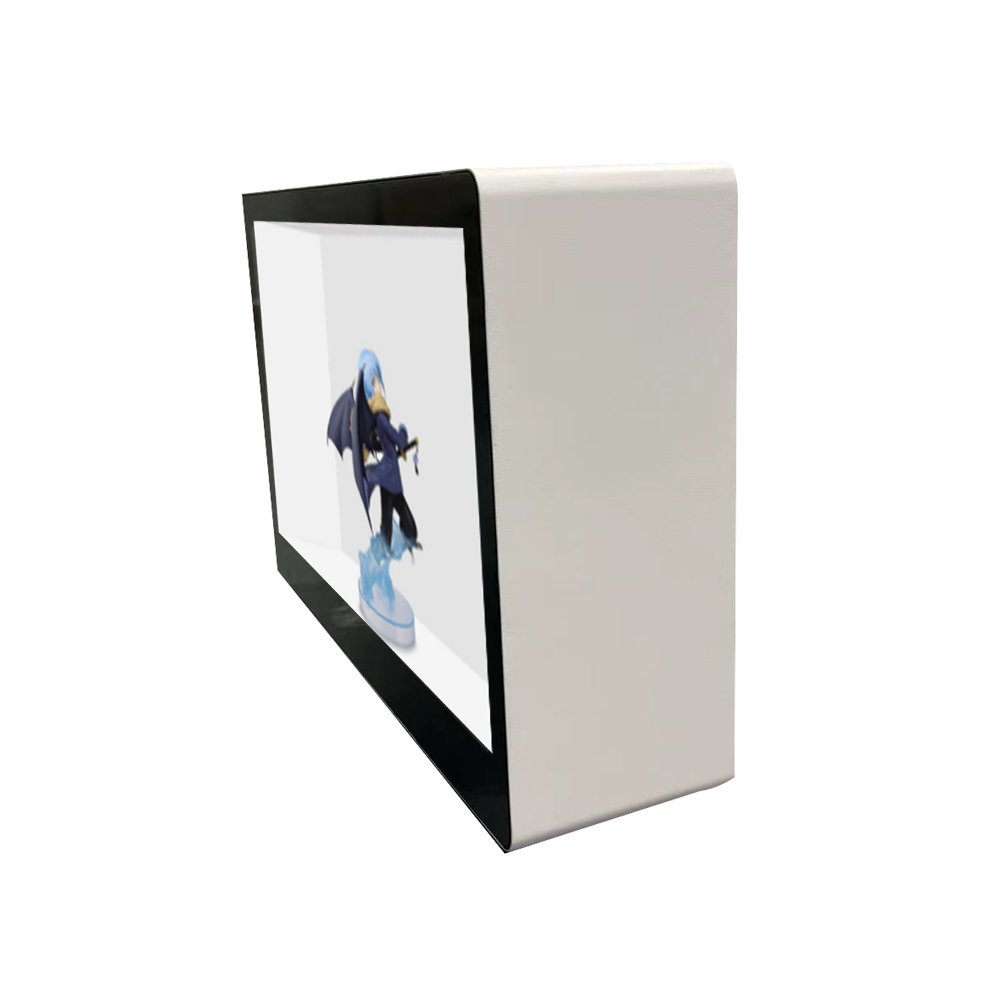

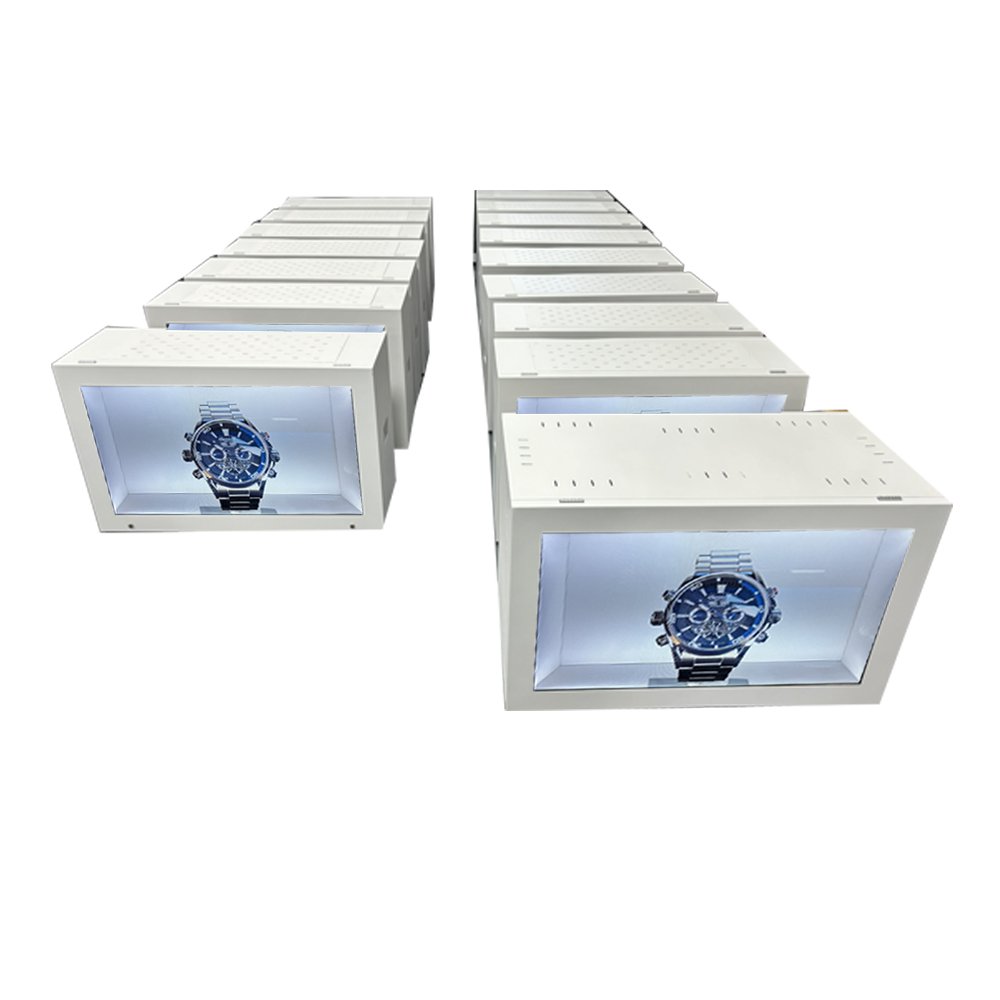

Holographic 3D Transparent LCD Advertising Display

Intelligent Transparent Vision Revolutionizer – Next-Generation Commercial LCD Transparent Display Cabinet Holistic Solution

In the era where digital marketing converges with physical experiences in new retail, our revolutionary transparent display cabinet redefines premium product presentation through its “virtual-physical symbiosis” design philosophy. Integrating transparent display technology with smart IoT technology, this innovative equipment achieves a perfect balance of 72% light transmittance and 4K ultra-HD resolution via patented LCD transparent technology. Deployed across 36 countries for luxury retail, digital exhibitions, and smart city projects, it stands as a strategic tool for high-end commercial spatial digitization.

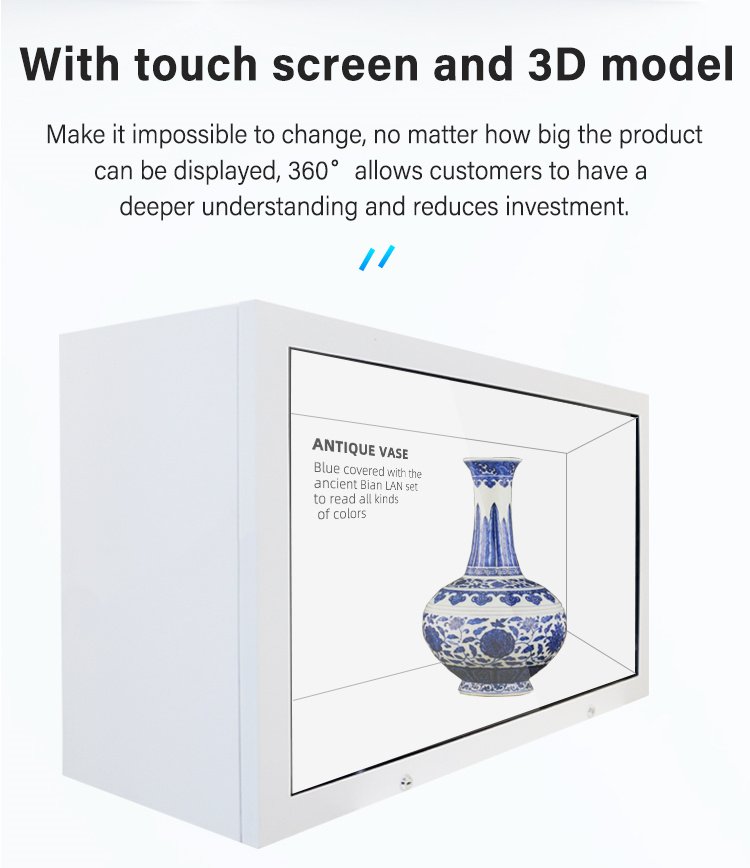

3D Transparent Interaction System – Ushering in a New Era of Advertising
As a groundbreaking innovation in transparent display cabinets, the product pioneers a dual-mode “physical display + digital empowerment” architecture. Featuring nano-level etching-processed transparent LCD panels, it delivers 3840×2160 ultra-HD visuals while maintaining cabinet transparency. In display mode, jewelry and watches appear to float amidst dynamic lighting effects; in advertising mode, the 10-bit color-depth panel renders lifelike imagery with 120Hz refresh rates for seamless motion. This transparent display technology boosts customer dwell time by 300% at advertising points, creating immersive “product-as-medium” marketing experiences.

Omnichannel Smart Hub – Reconstructing Commercial Value Chains
The cabinet’s excellence extends to its intelligent management system. Equipped with a military-grade quad-core processor and AI image optimization chip, it processes 16 signal sources simultaneously. Through its B/S architecture cloud control platform, managers remotely synchronize global store devices and upload 28 content formats, including 4K promos and 3D product animations. The proprietary “Time-Space Matrix” scheduling system auto-switches playlists based on foot traffic: brand stories in mornings, promotions at noon peaks, and artistic displays at night. Verified in Milan luxury boutiques, this feature increases conversion rates by 45% and sales per square foot by 27%.

Multiscenario Adaptability – Unleashing Spatial Potential

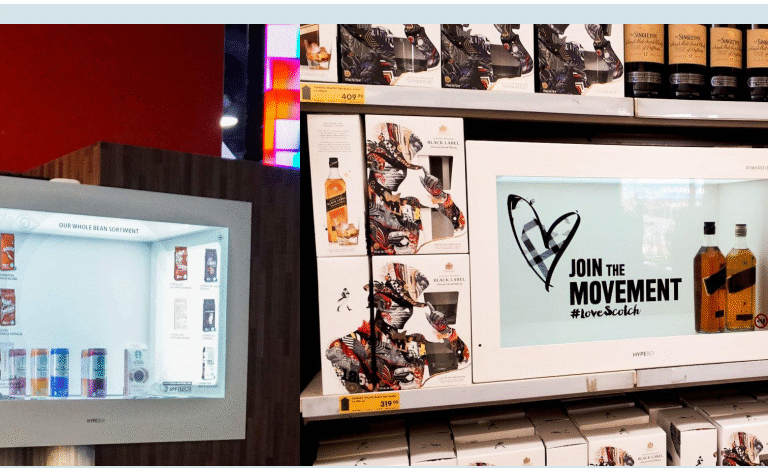

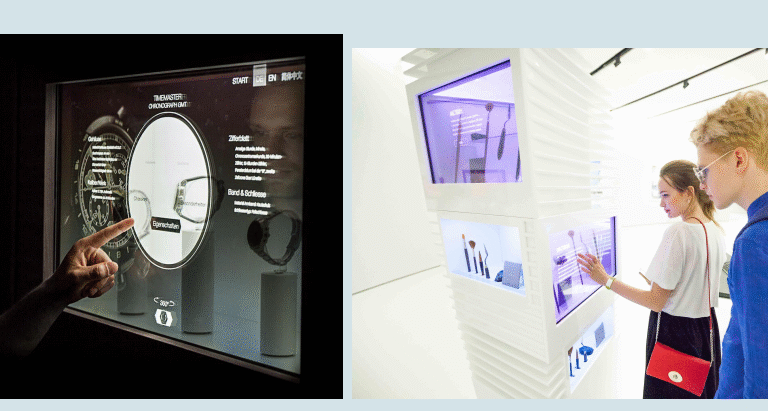

This transparent display cabinet continues transforming global commerce: At Dubai Duty Free, its blended physical-digital showcases drive $280K monthly sales per unit; in Shanghai digital art exhibitions, multi-cabinet holographic windows create timeless visual spectacles; Tokyo’s Ginza flagship store updates 200 terminals instantly via remote control. Whether highlighting jewelry craftsmanship, dissecting automotive components, or resurrecting museum artifacts digitally, its patented transparent display technology crafts jaw-dropping “hyper-real” presentations.
From material science breakthroughs to AI algorithm evolution, every detail of this LCD transparent display cabinet embodies deep commercial insights. Its transparent display technology not only erases physical limits of product showcasing but also pioneers the “space-as-medium” marketing paradigm. Where technological aesthetics meet business acumen, we empower global brands to build future-ready immersive portals – transforming every cabinet into a traffic magnet and every display into value growth.
Key Words: transparent display cabinet, transparent display technology, smart IoT technology

Get in touch

Basic functions of the software
Support video, pictures, text, scrolling subtitles, office documents and web pages and other materials display;
Support timing switch machine, unattended, 24/7 no rest;
Support full screen and split screen display programs, terminals can be distributed deployment, grouping, sub-regional tree structure;
Built-in stereo surround sound, sound stereo full;
Using HD LCD panel, with high brightness and contrast;

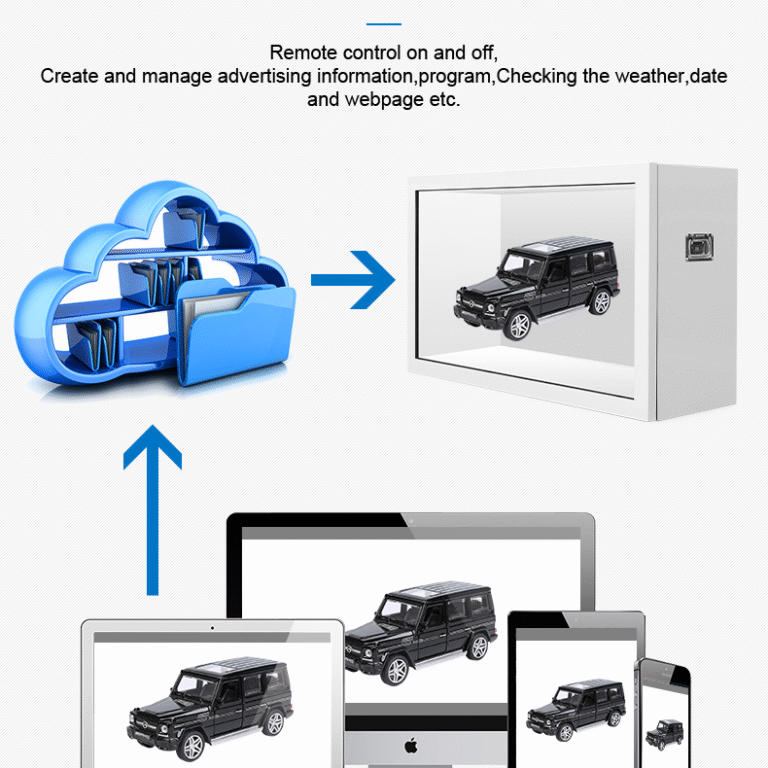

Support remote monitoring, real-time update of networking content, status monitoring, remote restart, etc.
Support local area network, wide area network and other release programs, terminals can be connected via wired network, WiFi, 4G network, etc.
Meet the needs of wired wireless networking; When there is no network, the program can be updated through the U disk;
Release is simple, only four steps: 1, upload material; 2. Program production; 3. Program scheduling; 4, program release.

Genre Self-service kiosk with Pcap touch

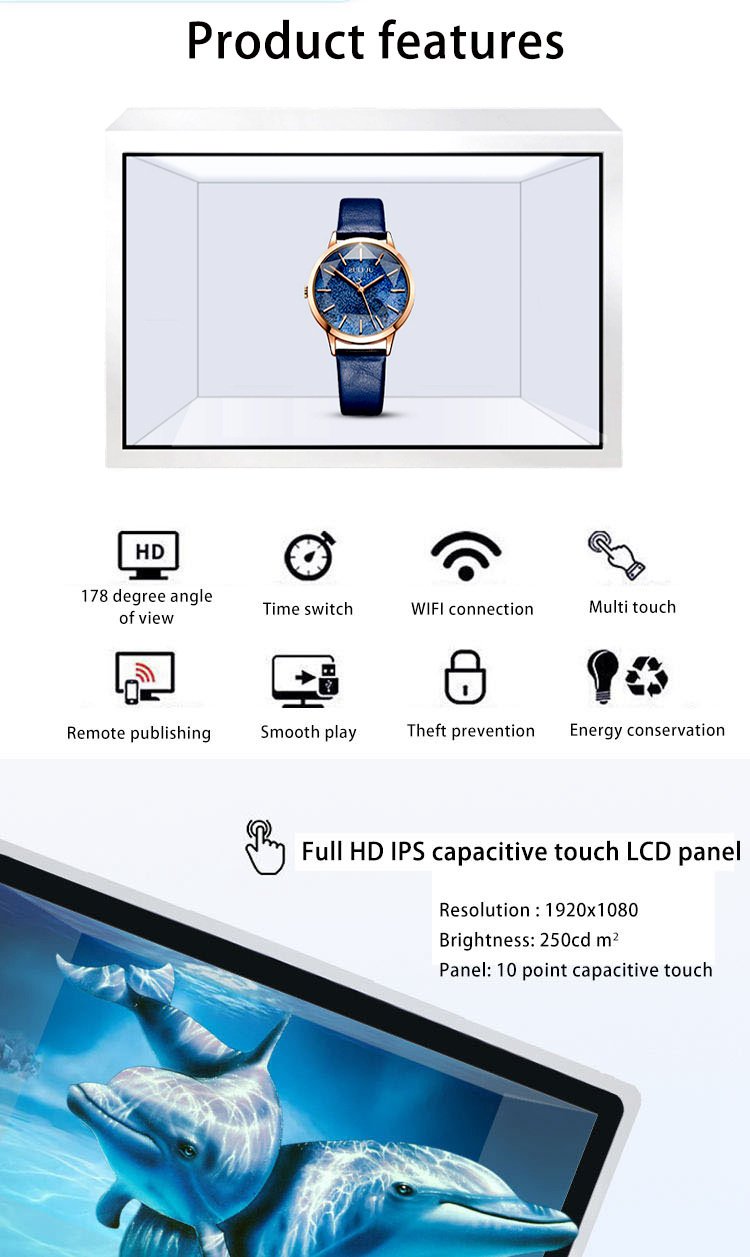

Display section
LCD screen parameters Resolution 1920*1080、3840*2160
Display color 8 bit, 16.7 M
Brightness 250-500 cd/㎡
Contrast 4000:1
Viewing Angle (degree) 178°(H) /178°(V)
Panel permeability ≥75%
Light source lifetime 30Khours
Longevity > 50,000 hours
Response time 3ms (typ.)
The operating system is optional Andriod Android scheme

Basic parameters

Scheme RK3568, quad-core, main frequency up to 2.0GHz
Graphics processing
device
Mali-G52
Support OpenGL ES 1.1/2.0/3.2, OpenCL 2.0, Vulkan 1.1
Embedded high performance 2D acceleration hardware
RAM 4G
ROM  32G
System Android 11

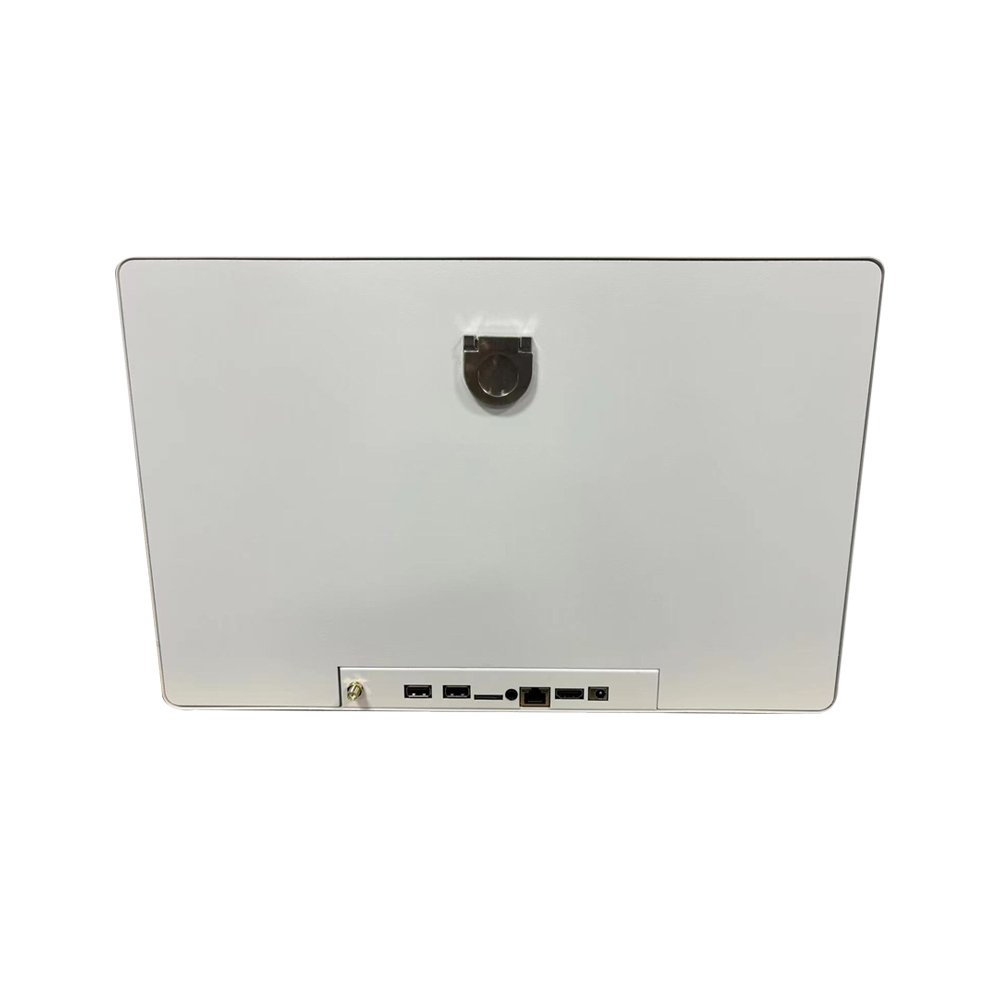

Web Support Standard: Ethernet, WiFi
Input/output interface USB 2
RJ45 1
TF card slots 1
SIM card slots 1
HDMI input optional
Windows Windows

Basic parameters

Graphics processing device windows 10/11
RAM 4G
SSD  128G
System windows 10/11 i3 4th
Web Support Standard: Ethernet, WiFi Optional
Input/output interface USB 4
RJ45 1
HDMI input 1
Optional device Hardware logo,color,microphone,camera
Screen Size 10.1、13.3、15.6、18.5、21.5、32、43、49、55、65、75、85、98inch
Supported media formats Video playback Support wmv, avi, flv, mpeg
, mkv, mp4, mpg, mov, rm, rmvb、dive、xvid、vob、dat, etc,
Picture Format JPG、MMP、GIP、PNG supported
Audio format MP3、WMA、OGG

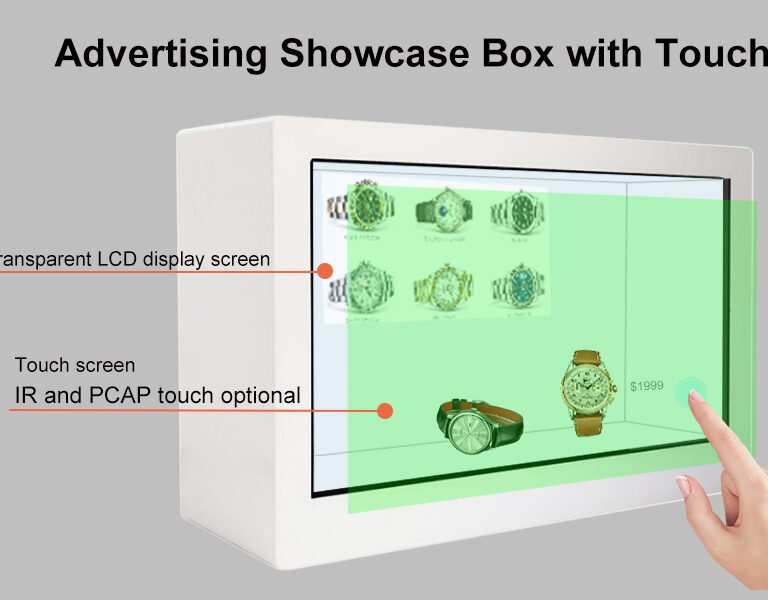

touch fuction Capacitance
parametersApplicable size:10.1、13.3、15.6、18.5、21.5inch
Touch embedding mode built-in integrated, not external
Touch Sensing Technology Capacitive Sensing Recognition Touch technology (10 points)
Writing method Fingers, stylus or other non-transparent objects not less than 5mm in diameter
Cursor speed 120 points /s
Positioning accuracy more than 90% of the touch area is ±2mm
Touch resolution 32767 x 32767
The number of touches  is theoretically infinite
Computer response system automatic identification; ≤15ms
Driver drive free
Infrared touch
Applicable size:32、43、49、55、65、75、85、98inch
Touch embedding mode built-in integrated, non-plug-in
Touch sensing technology Infrared sensing recognition touch technology (more than 10 points)
Writing method Fingers, stylus or other non-transparent objects not less than 5mm in diameter
Cursor speed 120/s
Positioning accuracy more than 90% of the touch area is ±2mm
Touch resolution 32767 x 32767
The number of touches is theoretically infinite
Transmission speed 480Mbps
Scanning frequency > 100Hz/S
Port Type Type A USB male +UATR
Response speed ˂10ms
Touch lif  withstand more than >5000W of touch
Machine parameters Power of the whole machine /
Input voltage AC 100~240V 50/60Hz
Working environment 0 ℃ to 50 ℃
Working humidity 20%~90%
Storage environment – 20 ℃ ~ 60 ℃
Storage humidity 5%~90%

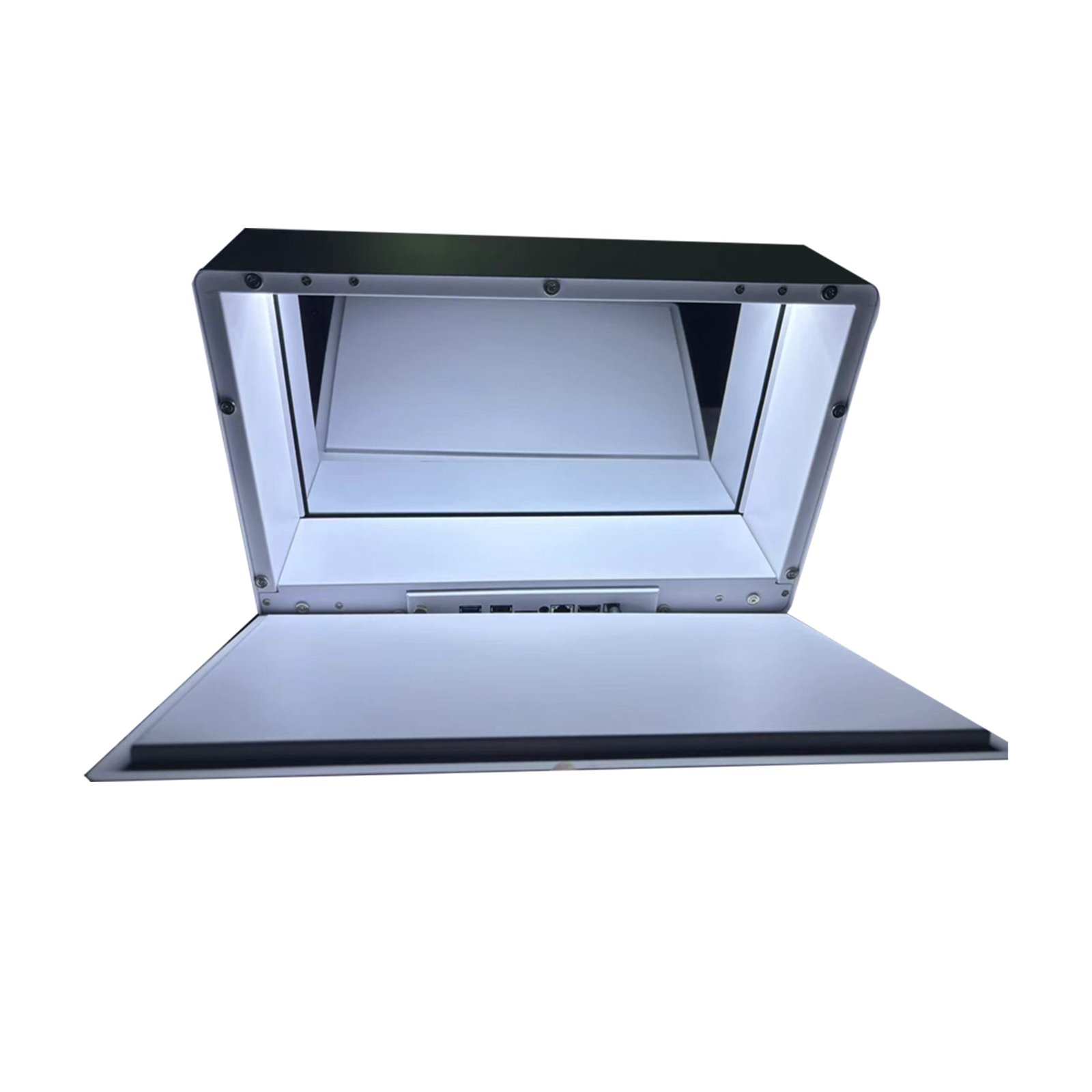

Exterior materials Aluminum profile + hardware
Exterior color White, black

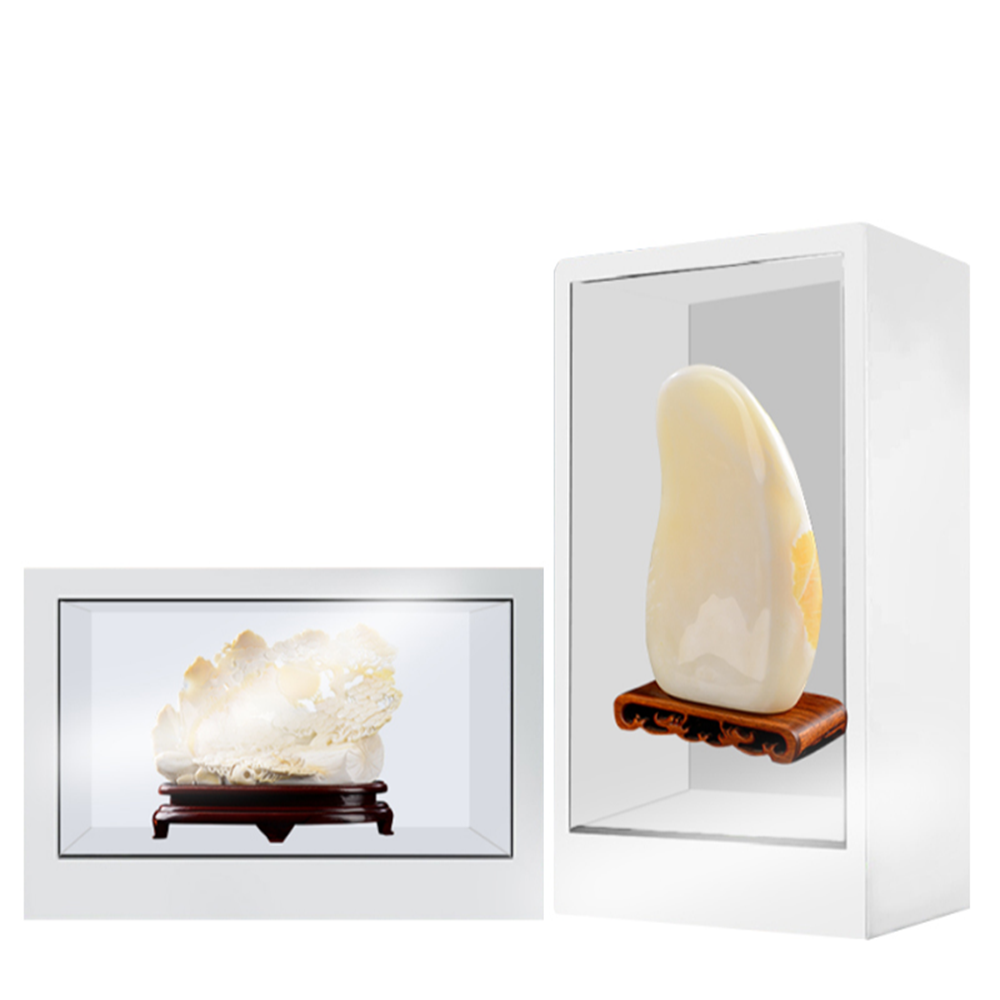

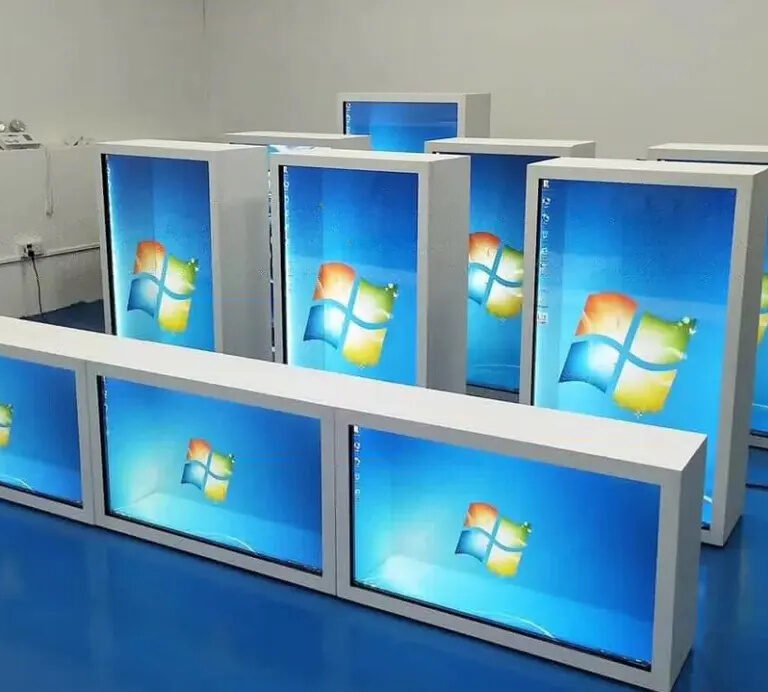

type Horizontal、Vertical
Accessories power cord,WiFi antenna stick,Remote control unit
Product size
Serial number Screen size product size Power of the whole machine remark
1 10.1inch 261mm*198.5mm*100mm ≤60W
2 13.3inch 334mm*226mm*100mm ≤60W
3 15.6inch 385mm*248mm*100mm ≤60W
4 18.5inch 450.8mm*286.4mm*100mm ≤60W
5 21.5inch 585mm*376mm*250mm ≤60W
6 32inch 826mm*521mm*300mm ≤80W
7 43inch 1069mm*657mm*300mm ≤100W
8 49inch 1202mm*732mm*300mm ≤220W
9 55inch 1338mm*809mm*400mm ≤280W
10 65inch 1577mm*952mm*400mm ≤280W
11 75inch 1819mm*1097mm*400mm ≤300W
12 85inch 2064mm*1235mm*400mm ≤380W
13 98inch 2327mm*1382mm*500mm ≤450W
