High Brightness Wall-Mounted LCD Window Display | Commercial Grade 4000nits Brightness | 9.5mm Ultra-Narrow Bezel with 430 Cooling Vents | Energy-Saving Durable Solution for Retail Stores
🏆 High Brightness Wall-Mounted LCD Window Display
The High Brightness Wall-Mounted LCD Window Display revolutionizes commercial visual solutions with independent R&D and aesthetic engineering. Featuring 9.5mm ultra-narrow symmetrical bezels (97% screen ratio) and 57.2mm full-metal slim body, it reduces packaging volume by 40% versus 80mm-thick competitors, delivering minimalist elegance for retail spaces.
✅ Advanced Thermal Design
430 precision cooling vents expand heat dissipation area by 70%, coupled with aerospace aluminum frame and 1.5mm steel backplate, ensuring stable operation at 45℃ with 80,000-hour lifespan.

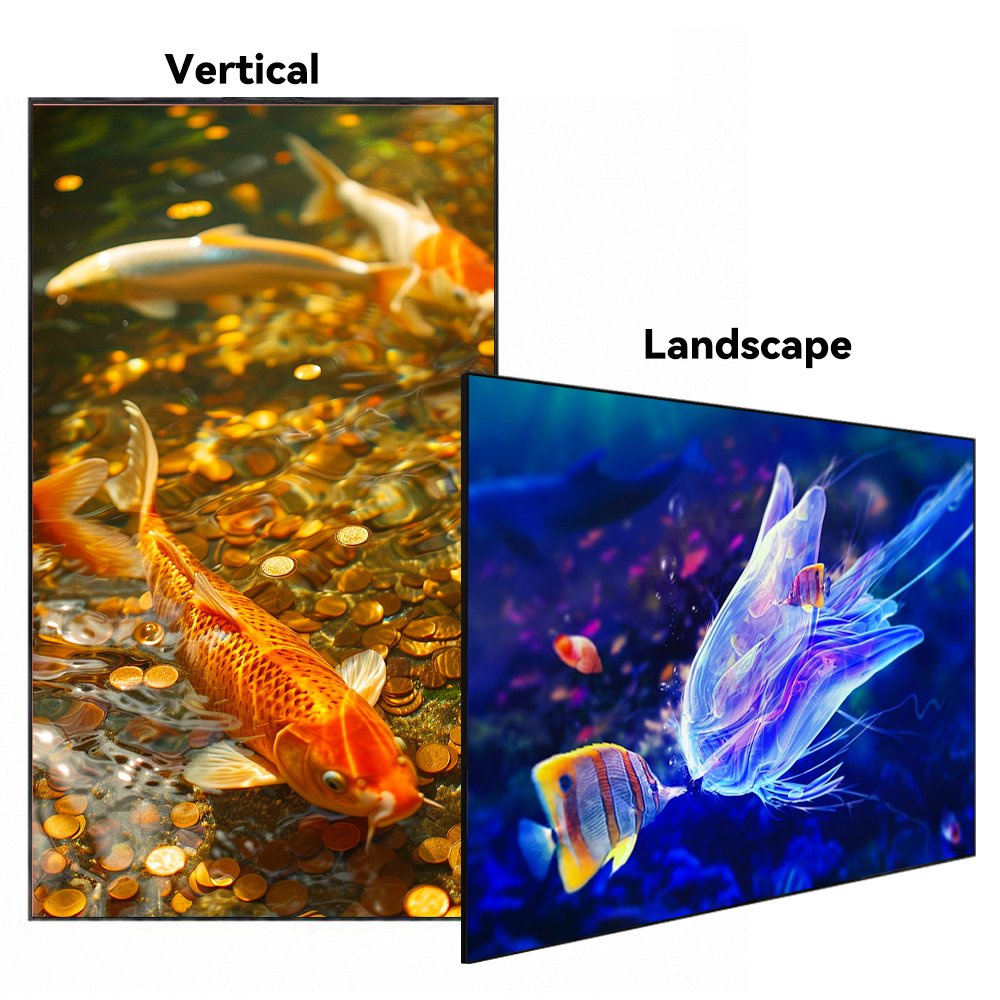

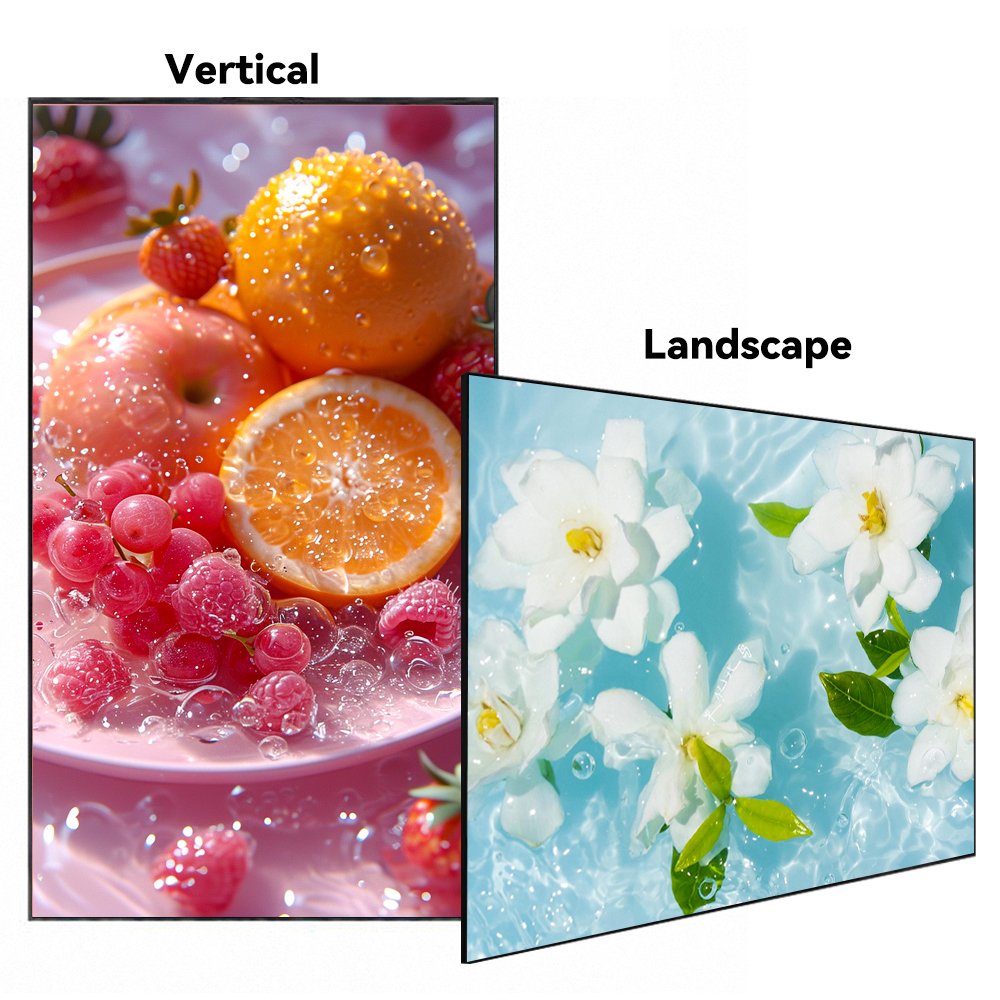

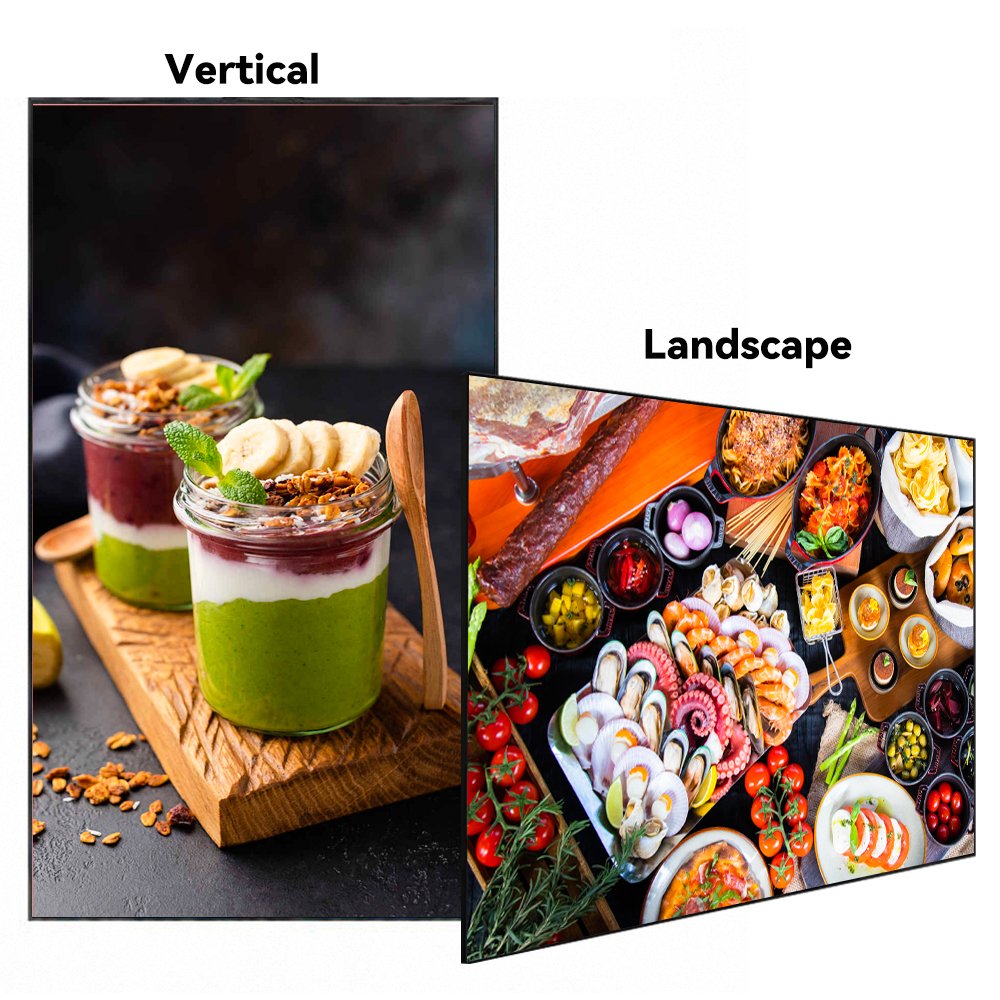

✅ Omni-directional Mounting
Equal-edge design supports landscape/portrait installations in 12cm depth, ideal for space-constrained storefronts/columns.
✅ Multi-system Compatibility
Plug-and-play support for Windows/Android/Linux and mainstream motherboards.
✅ Dual-mode Brightness
D-series delivers 3000-5000nit peak brightness with 1200:1 contrast (△E≤2) under direct sunlight.
✅ Environment Adaptation
Auto brightness adjustment (700-4000nits).
✅ Rapid Deployment

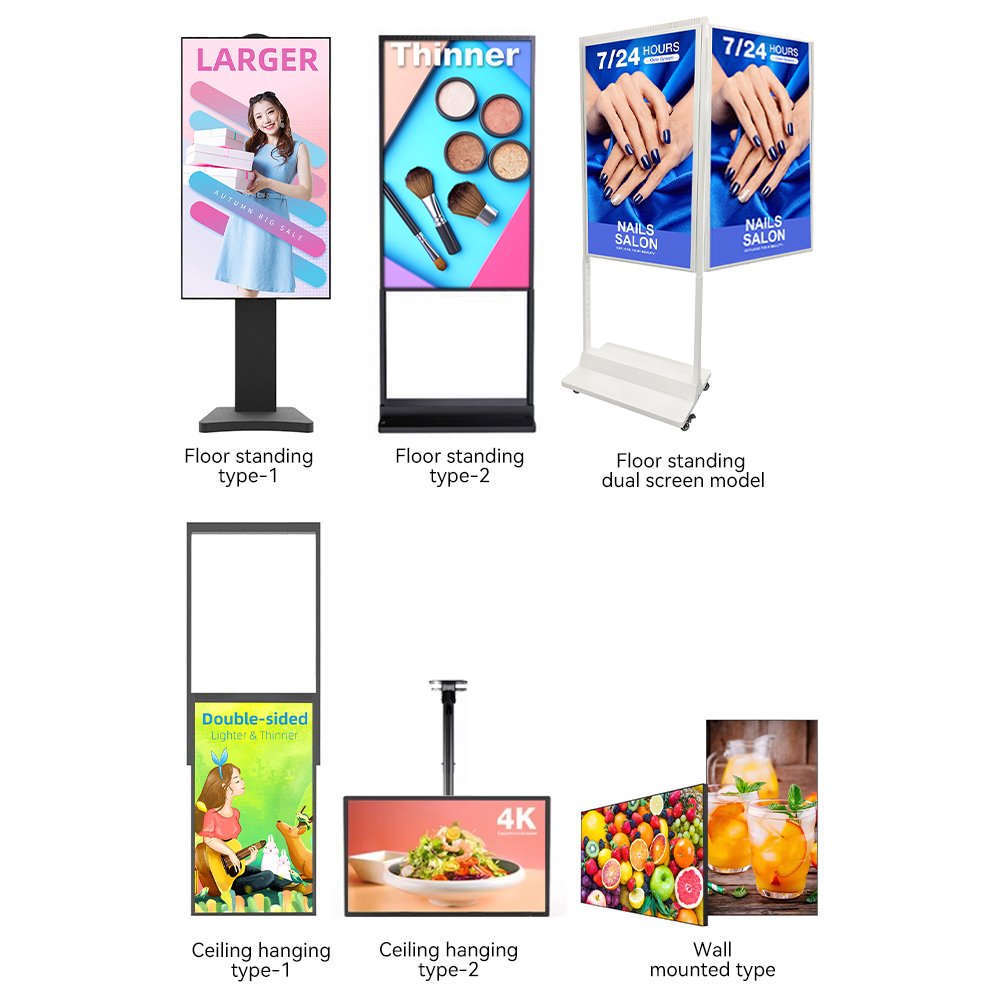

Standard VESA/wall/stand mounts enable 5-minute installation.
With 178° viewing angle and bezel-less immersion:
✅ Increases customer engagement by 60% and boosts foot traffic by 35%
(Apple Store validation).
✅ Modular architecture achieves MTTR<2hrs with <2% failure rate
Over 5-year 24/7 operation.
✅ Deployed in luxury retail
Setting new benchmarks for digital signage.
| High Brightness LCD Window Advertising Machine Technical Parameters | |
| Display Performance Parameters | |
| Panel Type | Industrial-grade LCD Liquid Crystal Panel |
| Display Size | 32/43/49/5/65inch (16:9 widescreen ratio) |
| Native Resolution | 3840×2160@60Hz (4K UHD) |
| Luminance Range | 700-4000nits (Series Dynamic Peak) |
| Static Contrast Ratio | 1200:1 (ANSI standard test environment) |
| Viewing Angle | 178°(H)/178°(V) (CR≥10) |
| Structural Design Parameters | |
| Chassis Thickness | 57.2mm±0.5mm (including heat dissipation module) |
| Bezel Width | Four-side symmetrical ultra-narrow design, single side ≤9.5mm |
| Unit Weight | 55″: 28.5kg±5% / 65″: 36.2kg±5% |
| Heat Dissipation System | 430-hole honeycomb matrix + dual ball-bearing fans (noise ≤28dB) |
| Mount Compatibility | VESA 400×400/600×400 standard mounting holes |
| Cable Management | Hidden cable management channel (max accommodates Φ20mm cables) |
| Hardware Configuration Parameters | |
| Standard Storage | 4GB RAM + 32GB ROM (configurable upon request) |
| Video Interfaces | HDMI, USB, RJ45, LVDS |
| Network Module | LAN, WAN, Wifi, 4G |
| OS Support | Windows 10/11 / Android / Linux |
| Power Specifications | 100-240V AC / Standby power consumption ≤0.5W |
| Environmental Adaptability Parameters | |
| Operating Temperature | -20℃~55℃ (humidity 5%-90% non-condensing) |
| MTBF | ≥50,000 hours (@25℃ standard operating conditions) |
| Vibration Resistance | Sine wave vibration 3Grms (10-500Hz) |
