Ceiling-Mounted Highlight Window Machine (Single/Dual) | 4000nits Commercial LCD Display | 3-15m Height Adaptable | Energy-Saving Digital Signage for Retail Atriums

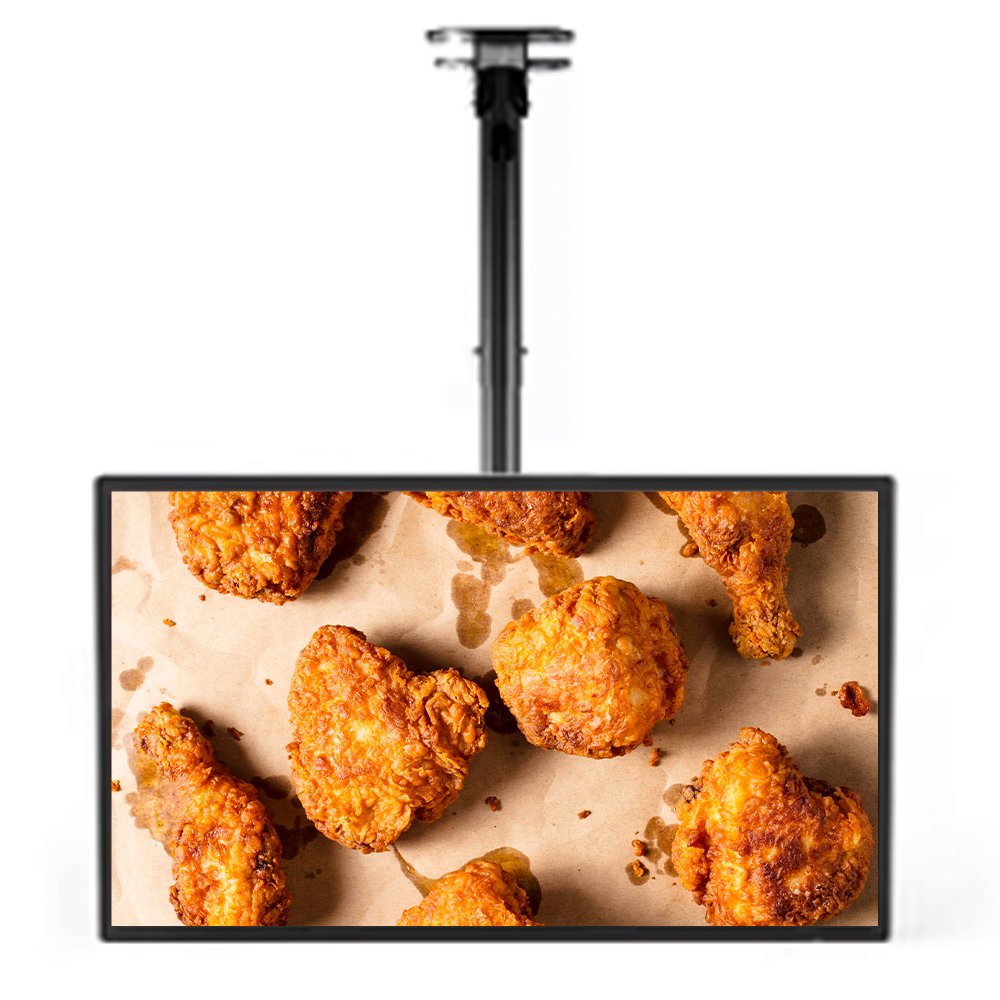

🪟 Ceiling-Mounted High Brightness LCD Window Display (Single/Dual-Sided)
Redefines aerial visual solutions with 9.5mm ultra-narrow bezels (97% screen ratio) and 57.2mm metallic slim profile. Engineered for high-traffic commercial spaces, it reduces ceiling load by 40% compared to 80mm-thick competitors, delivering 360° visual impact for atriums and flagship stores.
✅ Ceiling-Optimized Thermal Design
Advanced cooling architecture with aerospace-grade alloys ensures stable 4000nits output.
✅ Patented Counterweight System
Minimizes swing amplitude (≤0.5°) under vibrations.
✅ 12cm Ultra-Thin Profile
Flush ceiling mounting (3-15m height adaptable).

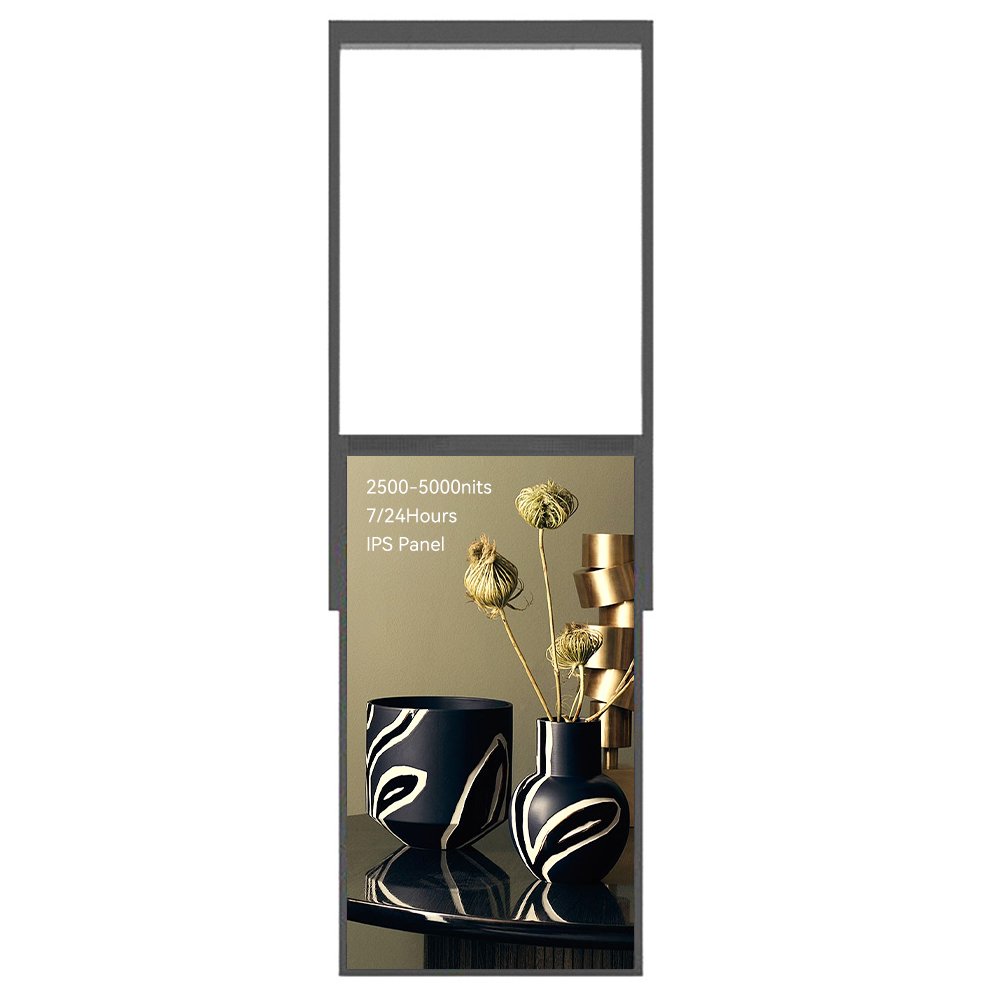

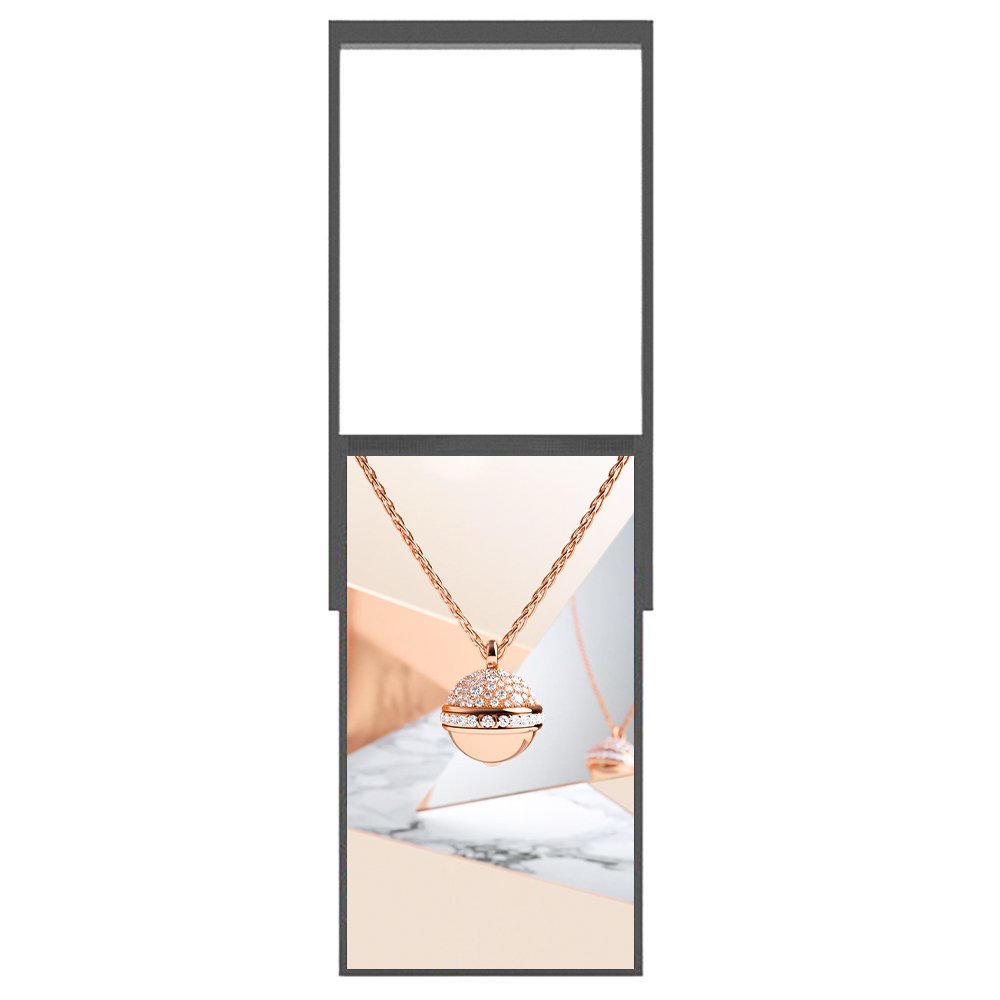

✅ Dual-Sided Models
Enable synchronized/alternate content playback.
✅ Tool-Free Modular Maintenance
Hot-swappable components.
✅ Multi-OS Compatibility
Windows/Android/Linux.
✅ Increases Foot Traffic by 35%
(Apple Store validated).

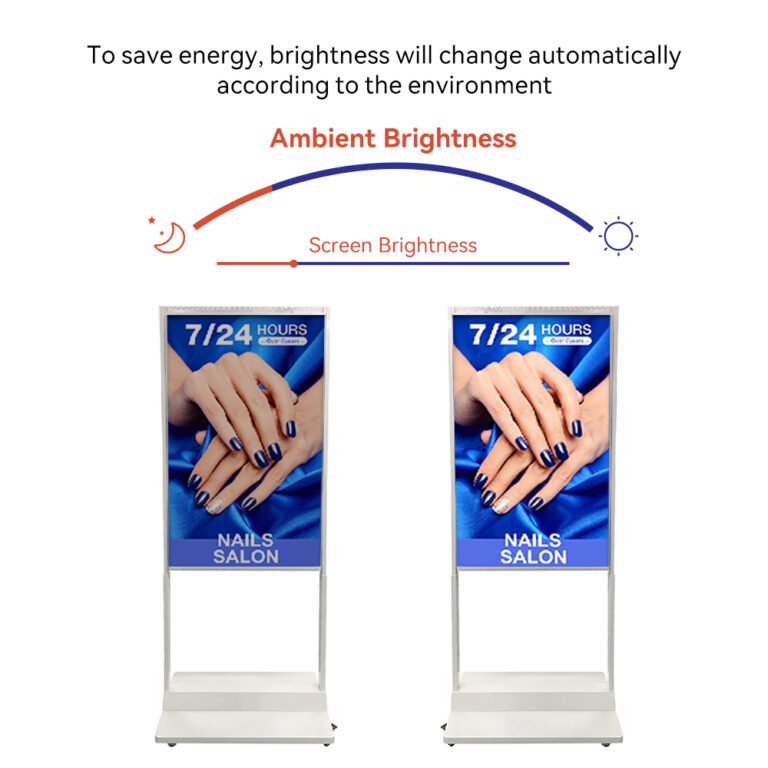

✅ 30% Energy Saving
With dynamic backlight control.
✅ Deployed in Dubai Mall Projects
| High Brightness LCD Window Advertising Machine Technical Parameters | |
| Display Performance Parameters | |
| Panel Type | Industrial-grade LCD Liquid Crystal Panel |
| Display Size | 32/43/49/5/65inch |
| Native Resolution | 3840×2160@60Hz (4K UHD) |
| Luminance Range | 700-4000nits (Series Dynamic Peak) |
| Static Contrast Ratio | 1200:1 (ANSI standard test environment) |
| Viewing Angle | 178°(H)/178°(V) (CR≥10) |
| Structural Design Parameters | |
| Chassis Thickness | 57.2mm±0.5mm (including heat dissipation module) |
| Bezel Width | Four-side symmetrical ultra-narrow design, single side ≤9.5mm |
| Unit Weight | 55″:28.5kg±5% / 65″: 36.2kg±5% |
| Heat Dissipation System | 430-hole honeycomb matrix + dual ball-bearing fans (noise ≤28dB) |
| Mount Compatibility | VESA 400×400/600×400 standard mounting holes |
| Cable Management | Hidden cable management channel (max accommodates Φ20mm cables) |
| Hardware Configuration Parameters | |
| Standard Storage Capacity | 4GB RAM + 32GB ROM (configurable upon request) |
| Video Interfaces | HDMI, USB, RJ45, LVDS |
| Network Module | LAN, WAN, Wifi, 4G |
| OS Support | Windows 10/11 / Android / Linux |
| Power Specifications | 100-240V AC / Standby power consumption ≤0.5W |
| Environmental Adaptability Parameters | |
| Operating Temperature | ·-20℃~55℃ (humidity 5%-90% non-condensing) |
| MTBF | ≥50,000 hours (@25℃ standard operating conditions) |
| Vibration Resistance | Sine wave vibration 3Grms (10-500Hz) |
