Professional-Grade Triple-Screen Outdoor Digital Signage System: IP65 Weatherproof Design, 2000-4000Nit High-Brightness Display, and Cloud-Managed Operation for 24/7 Commercial Advertising & Public Information Delivery
| Display Performance | |
| Size Options | 32″/43″/49″/55″/65″/75″ |
| Screen Type | [LCD] (Outdoor Dedicated High-Brightness LCD Screen) |
| Brightness | [1,000-3,000 nits] (Visible Under Direct Sunlight) |
| Contrast Ratio | [4,000:1] |
| Resolution | [1920×1080] (Full HD / 4K Optional) |
| Viewing Angle | [178° Horizontal/Vertical] (Wide-Angle Color Consistency) |
| Display Quantity Options | 1pcs, 2pcs, 3pcs |
| Environmental Resistance | |
| IP Rating | [IP65] (Dustproof & Waterproof Certified) |
| Wind Resistance Level | [Grade 12] (Withstands 60mph Wind Speeds) |
| Shock Resistance | [MIL-STD-810G] (Damage-Proof During Transport/Installation) |
| Surface Treatment | [1.0-2.0mm Galvanized Steel Housing, AkzoNobel Outdoor Anti-Corrosion Powder Coating (7+ Years Durability)] |
| Glass Panel | [5mm AG Etched Tempered Glass] (Impact/Scratch Resistant) |
| Hardware Specifications | |
| System | [Windows/Android Optional] |
| Processor | [RK3568 Quad-Core 2.0GHz] (Low Power Consumption & High Performance) |
| RAM | [4GB] (Smooth Multitasking) |
| Storage | [32GB] (Expandable to 256GB) |
| Ports | [USB 3.0×2, TF×1, HDMI IN×2, LAN×1, 12V DC IN×1, AUDIO×1] (Multi-Device Compatibility) |
| Network Module | [4G/WiFi Dual-Mode] (Backup for Signal-Limited Areas) |
| Software Features | |
| OS | [Android 11] (Open API for Custom Development) |
| Remote Management | [Cloud-based CMS Platform] (Batch Device Monitoring) |
| Content Formats | [4K Video/Images/Web/Real-Time Data] (Auto-Layout Adaptation) |
| Playback Modes | [Scheduled/Loop/Triggered Playback] (Scenario-Driven Strategies) |
| Analytics | [Playback Logs/User Dwell Heatmap] (Performance Visualization) |
| Electrical Controls | |
| Power Supply | Industrial-Grade Switching Power |
| Speakers | Waterproof Speakers |
| Lightning Protection | Three-Level Lightning Arrester |
| Timer | Daily/Weekly/Monthly Custom On/Off Scheduling |
| Leakage Protection | Built-in Leakage Circuit Breaker |
| Power Input | [AC 100V/50Hz or AC 220V/50Hz] (Global Voltage Compatibility) |
| Power Consumption | [≤400W] (Standby Mode ≤5W) |
| Environmental Adaptability | |
| Operating Temperature | [-20°C to 50°C] (Stable in Extreme Cold/Heat) |
| Note | Heating Module Recommended for Temperatures Below -10°C* |
| Operating Humidity | [5% to 95% RH] |
| Application Scenarios Ideal for public spaces | |
| Shopping Malls、Commercial Streets、Office Building Facades、Parks、Bus Stops | |

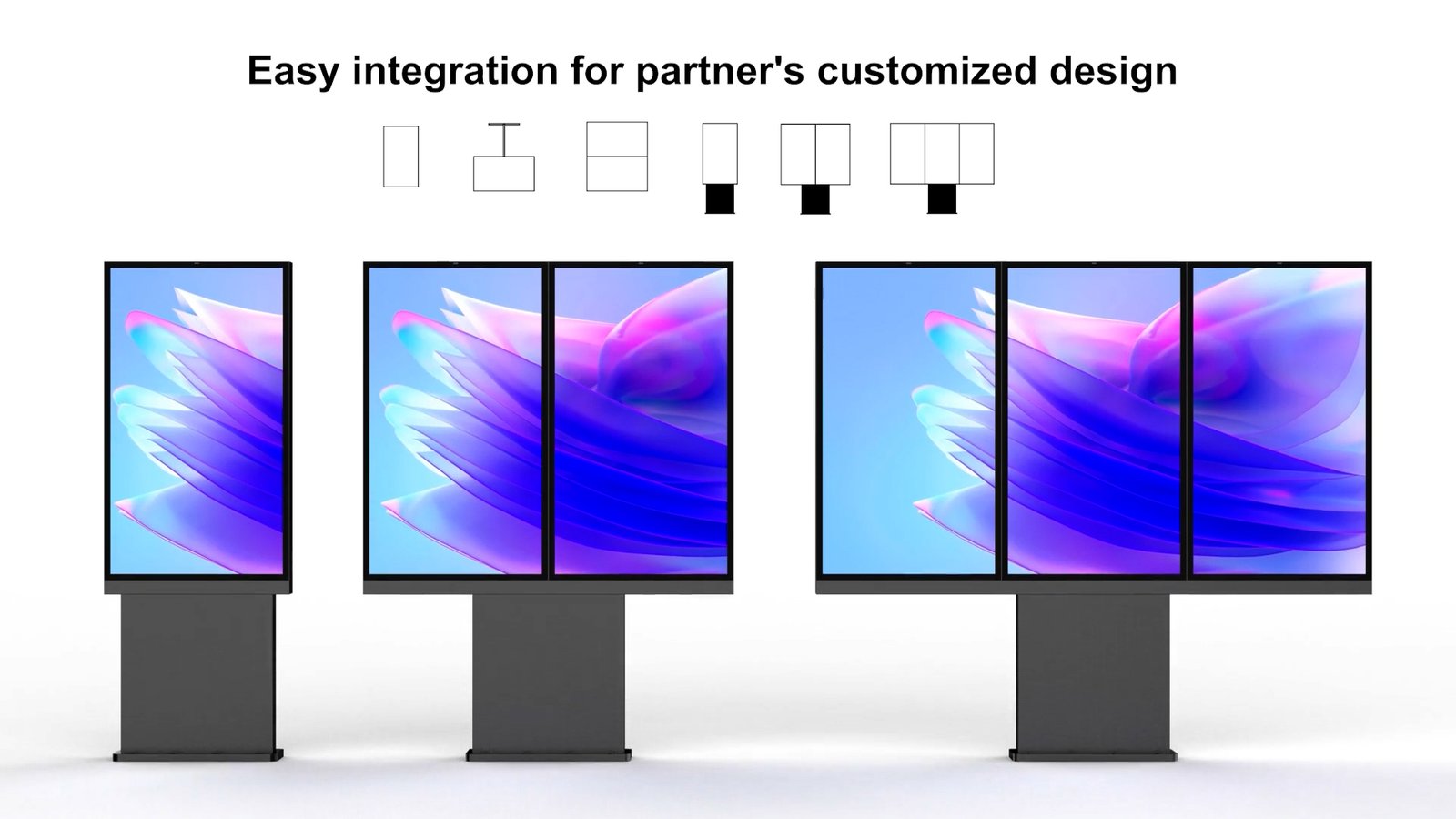

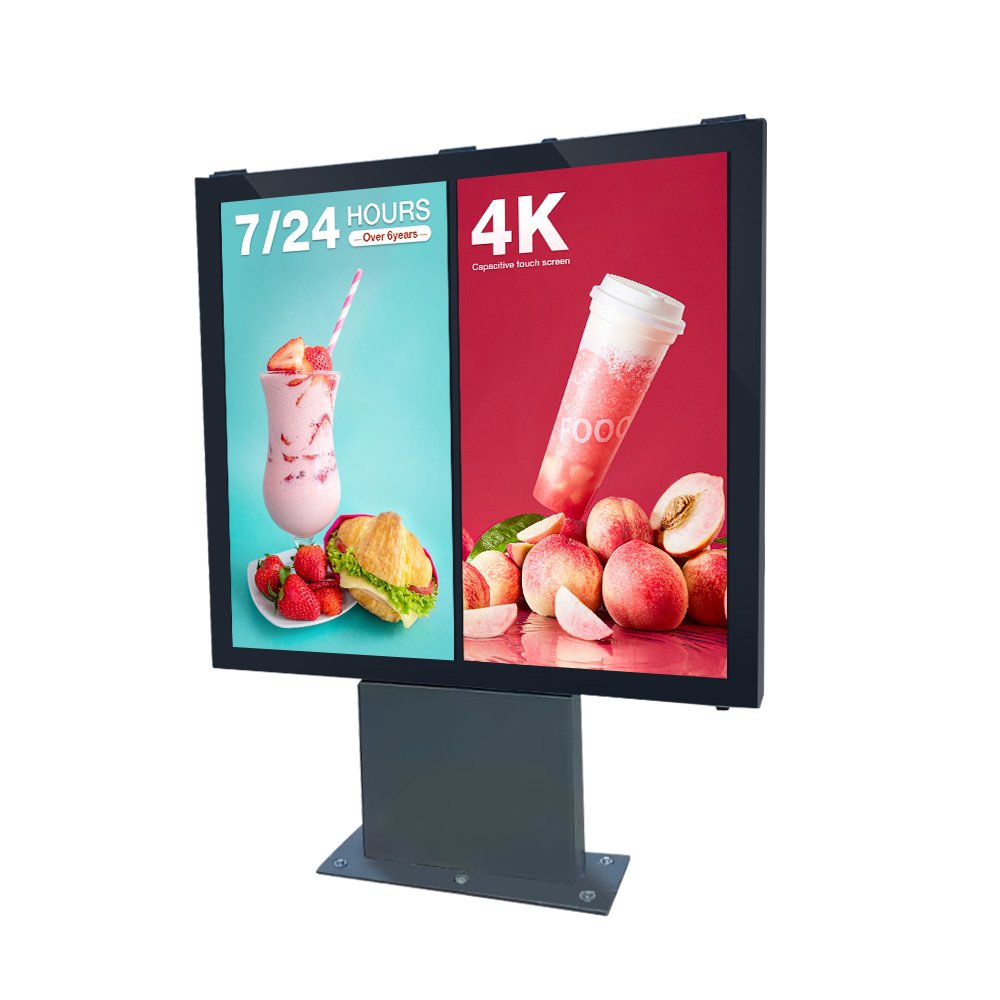

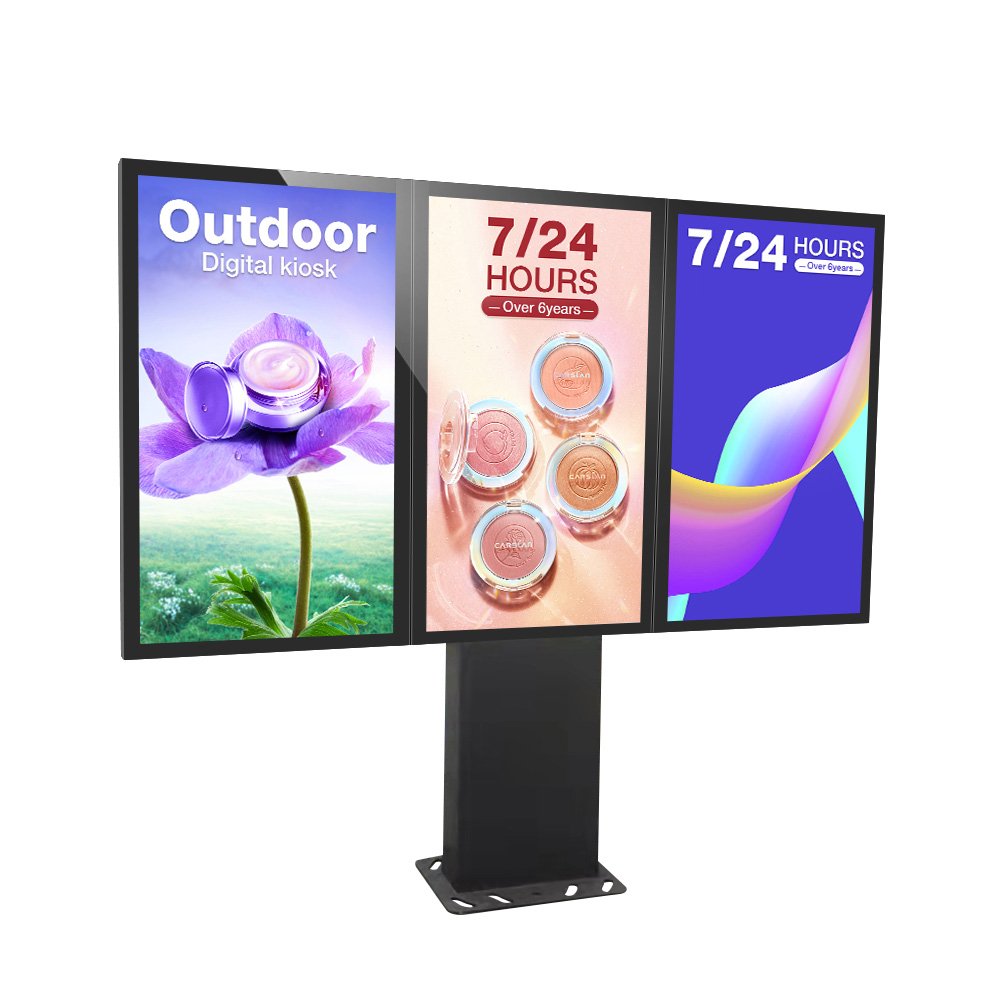

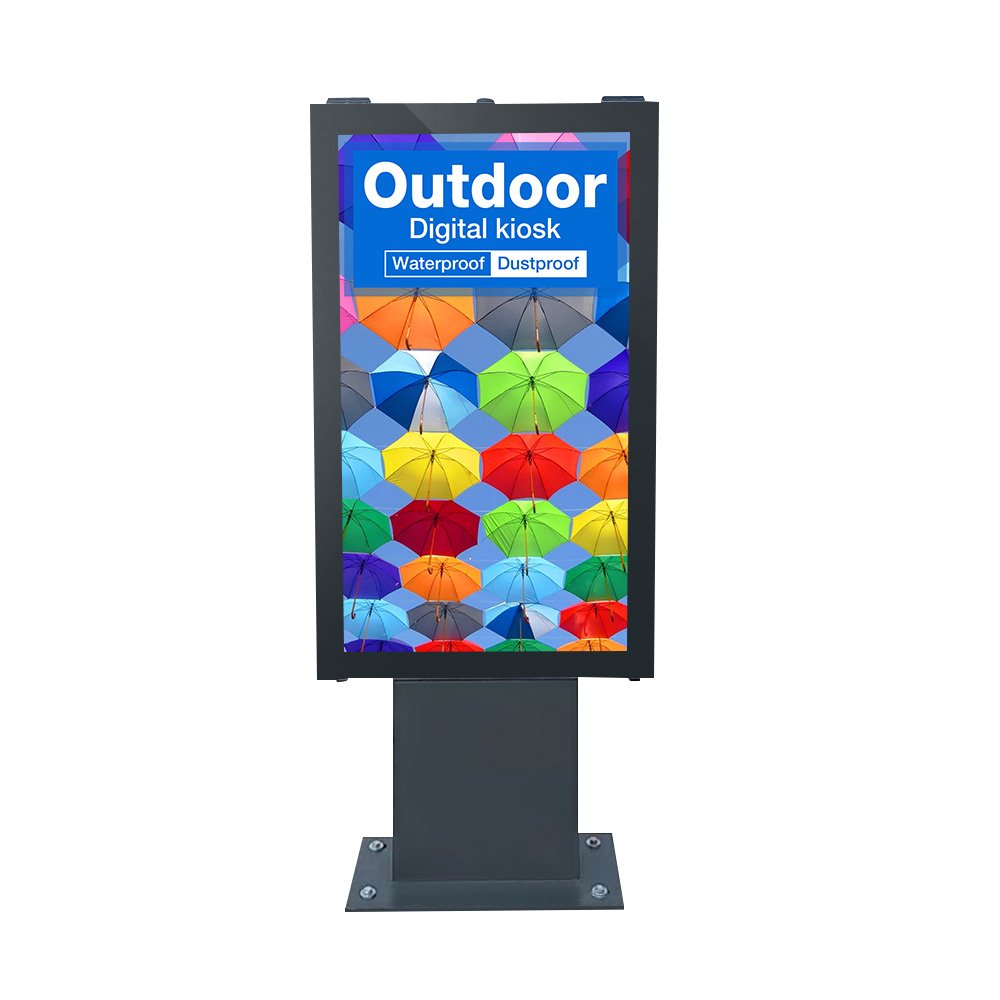

Industrial-Grade All-Weather Triple-Screen Outdoor Digital Signage System
Intelligent Visual Communication Hub for Extreme Environments
Amid accelerating urban digitalization, our Industrial-Grade All-Weather Triple-Screen Outdoor Digital Signage System redefines reliability standards for outdoor advertising equipment through military-grade protective architecture and intelligent light-sensing technology. Designed for harsh environments like traffic control centers, smart campuses, and energy stations, this system utilizes three industrial-grade LCD screens of identical dimensions, maintaining stable operation under extreme conditions including torrential rain, sandstorms, and sub-zero temperatures.
Structural Stability of Triple-Screen Outdoor Digital Signage
1.0-1.5mm Aluminum Enclosure – Industry-first innovation coated with AkzoNobel outdoor-grade powder coatings, ensuring 7+ years of corrosion resistance.
IP66 Waterproof Design – Fully sealed enclosure with waterproof channels and labyrinth structures in control boxes.
Dustproof Design – Hermetic enclosure structure prevents dust ingress into internal components.
5mm Anti-Glare (AG) Tempered Glass – Etched surface technology reduces light reflection by 78%.
Modular Maintenance – Component-based design enables swift installation and servicing.
Anti-Theft Mechanism – Base/bracket features internal locking screws to prevent unauthorized disassembly.
Quick Installation – Pre-drilled mounting holes with customizable brackets for wall/object fixation; ready-to-install with included accessories.
High-Performance Display Features
Outdoor High-Brightness LCD Panels – 1000-3000nit brightness ensures visibility in direct sunlight, with 50,000-hour lifespan.
Full HD Resolution – 1920×1080 pixel clarity for sharp content delivery.
178° Viewing Angle – Wide visibility with high dynamic contrast (3000:1).
Smart Light-Sensing System – Auto-adjusts screen brightness according to ambient light, ensuring eye comfort across daylight cycles.
Precis
